Pathographs are interactive, directed-graph visualizations of disease causal mechanism networks. They replace the previous static Mermaid diagrams on disorder HTML pages with a D3.js + dagre-based rendering that supports hover tooltips, click-to-highlight, legend filtering, and zoom/pan.

Overview

Each disorder page automatically generates a pathograph from the downstream edges in pathophysiology entries and the sequelae edges in phenotypes. The graph shows how upstream mechanisms cause downstream effects and how phenotypes lead to further complications.

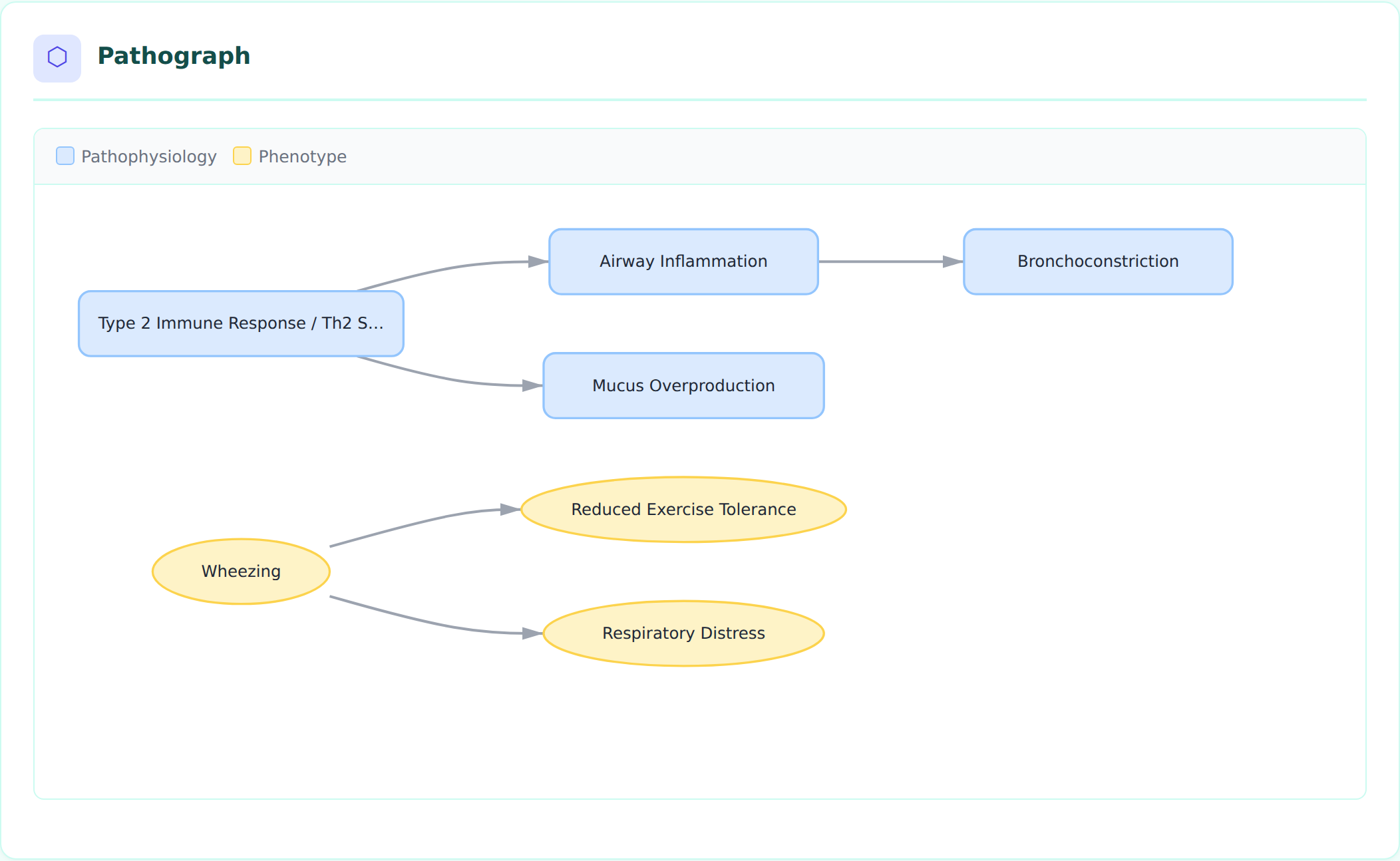

Pathograph for Asthma Asthma pathograph showing Type 2 Immune Response driving Airway Inflammation and Mucus Overproduction, with Wheezing leading to downstream phenotypes.

Node Types and Shapes

Nodes are drawn from six sections of the disorder YAML file, each with a distinct shape and color:

Node Type Shape Color Source Section
Pathophysiology Rounded rectangle Blue (#dbeafe) pathophysiology
Phenotype Ellipse Amber (#fef3c7) phenotypes
Environmental Diamond Green (#dcfce7) environmental
Genetic Hexagon Purple (#f3e8ff) genetic
Treatment Rectangle Pink (#fce7f3) treatments
Biochemical Circle Indigo (#e0e7ff) biochemical
Orphan (undefined target) Dashed border, red Red (#fee2e2) N/A

Different shapes (not just colors) improve accessibility for colorblind users.

Interactive Features

Hover Tooltips

Hovering over a node displays a tooltip with rich metadata pulled from the disorder YAML:

  • Node name and type
  • Description (truncated to 200 characters)
  • Evidence count (number of PMID-backed evidence items)
  • Cell types (CL ontology terms)
  • Biological processes (GO terms)
  • Genes (HGNC terms)
  • Anatomical locations (UBERON terms)
  • Frequency and severity (for phenotypes)
  • Ontology term ID

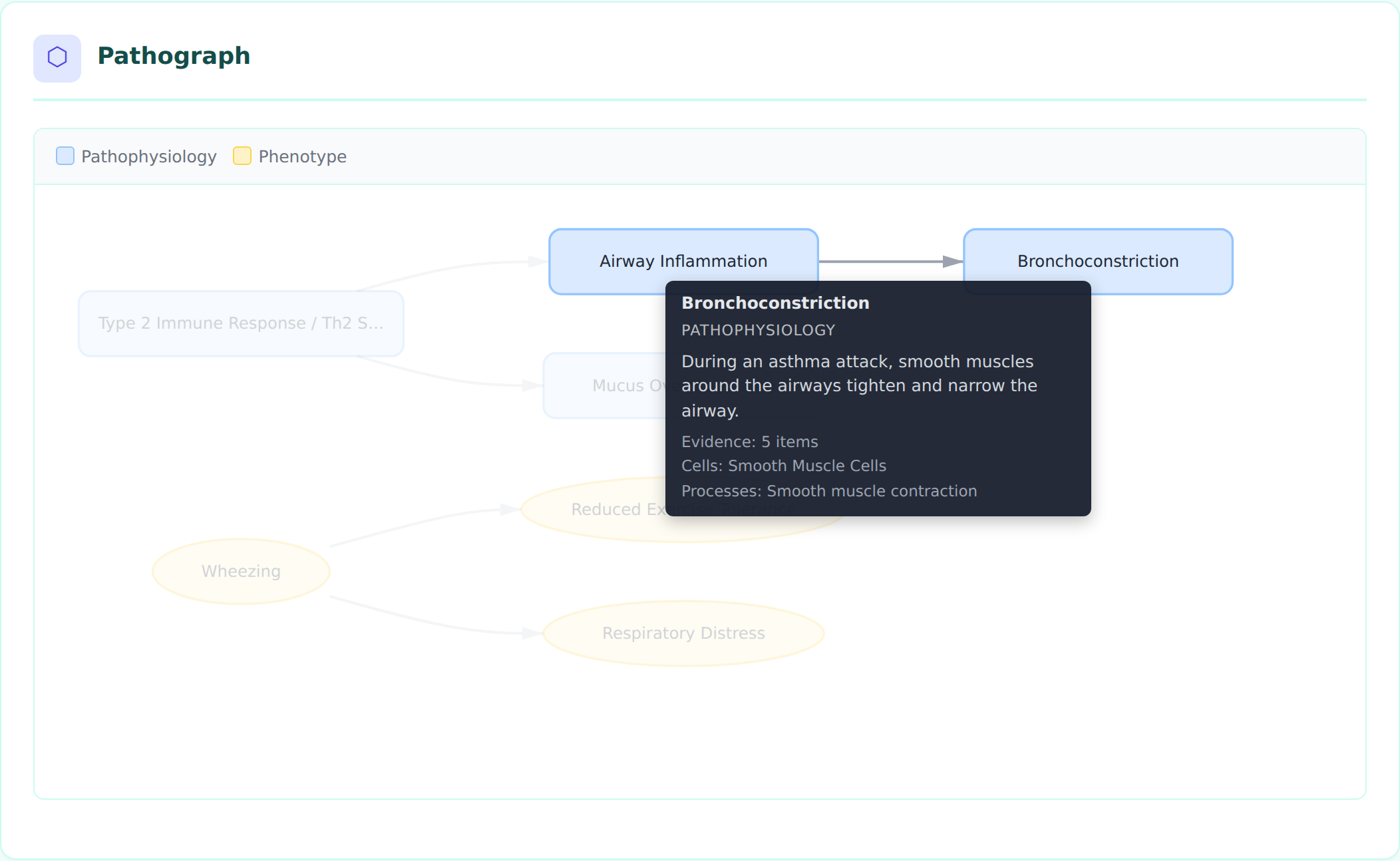

Tooltip showing Bronchoconstriction metadata Tooltip for the Bronchoconstriction node showing its description, 5 evidence items, cell types (Smooth Muscle Cells), and biological processes.

Click to Highlight

Clicking a node highlights it and its direct neighbors (upstream and downstream), dimming all other nodes and edges. This helps trace causal chains in complex graphs.

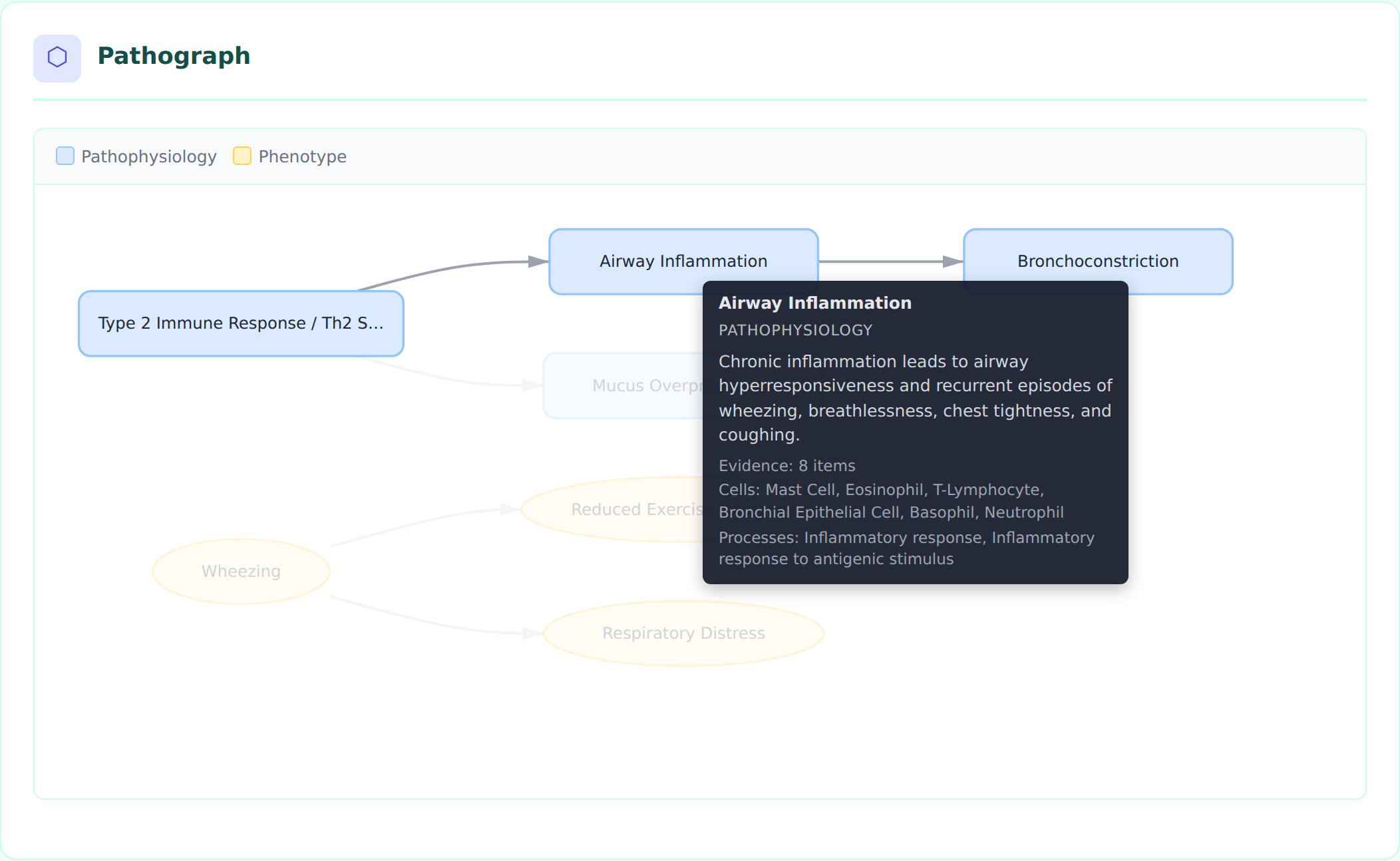

Highlighted node showing connected neighbors Clicking Airway Inflammation highlights its upstream cause (Type 2 Immune Response) and downstream effect (Bronchoconstriction), dimming unrelated nodes.

Click the background to clear the highlight.

Legend Filtering

The legend bar at the top of the pathograph shows which node types appear in the graph. Click a legend item to toggle visibility of that node type. This is useful for focusing on specific aspects of the mechanism network.

Zoom and Pan

  • Scroll to zoom in/out (0.3x to 3x)
  • Click and drag the background to pan
  • The graph uses viewBox scaling so it fits the container width by default

Complex Graphs

For disorders with many mechanisms and phenotypes, the dagre layout algorithm arranges nodes in a hierarchical left-to-right flow, avoiding overlaps:

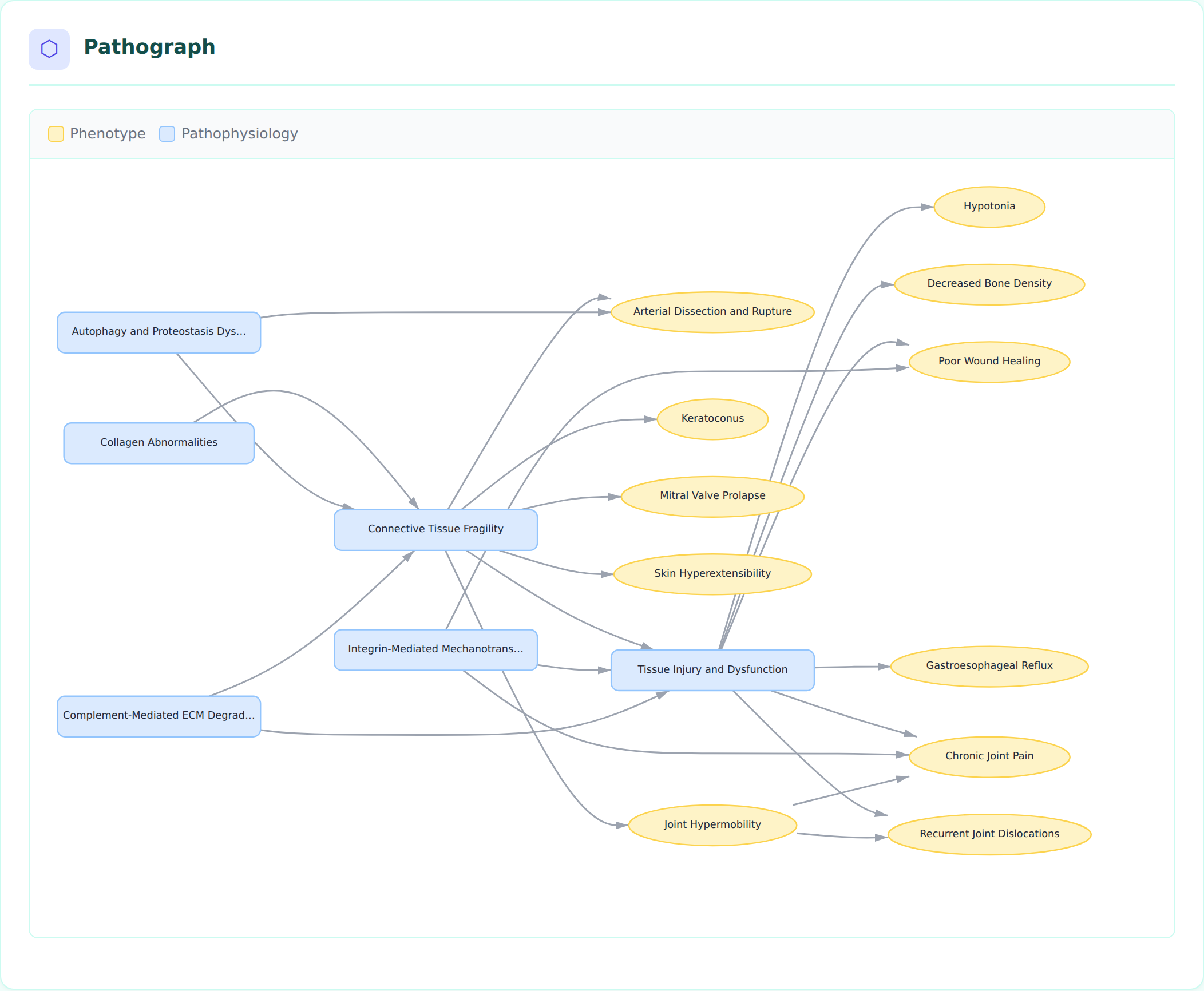

Complex pathograph for Ehlers-Danlos Syndrome Ehlers-Danlos Syndrome pathograph with 17 nodes showing collagen abnormalities cascading through connective tissue fragility to multiple downstream phenotypes.

How Pathograph Data is Generated

The pathograph pipeline has three stages:

  1. build_causal_graph(disorder) (graph.py) — Extracts nodes from six disorder sections and edges from downstream/sequelae fields. Performs referential integrity checks (orphan target detection).

  2. graph_to_json(graph, disorder) (graph.py) — Serializes the graph to JSON, enriching each node with metadata from the raw YAML data (evidence counts, cell types, GO processes, genes, locations, etc.).

  3. Template rendering (disorder.html.j2) — Embeds the JSON inline and renders it using D3.js with dagre layout. The visualization is self-contained in each HTML page with no server-side dependencies.

Data Flow

disorder YAML
    |
    v
build_causal_graph() --> CausalGraph (nodes + edges + integrity issues)
    |
    v
graph_to_json()     --> JSON string with enriched node metadata
    |
    v
disorder.html.j2    --> Inline <script> calling renderPathograph()
    |
    v
D3.js + dagre       --> Interactive SVG visualization

YAML Structure That Drives Pathographs

Edges come from several sources. The causal backbone is built from pathophysiology downstream and phenotype sequelae; the other sections join that backbone through their own explicit linking slots (environmental via influences_mechanisms, treatments via target_mechanisms, experimental_models/computational_models via modeled_mechanisms, and biochemical via readouts).

A node with no edges is not drawn. graph_to_json emits only nodes that appear as the source or target of some edge, so an entry that never declares a link stays off the pathograph even though it still renders in its own card on the disorder page.

Pathophysiology downstream edges

pathophysiology:
- name: Airway Inflammation
  description: Chronic inflammation leads to airway hyperresponsiveness...
  downstream:
  - target: Bronchoconstriction
    description: AHR provides the substrate for bronchoconstriction...
    evidence:
    - reference: PMID:38395082
      supports: SUPPORT
      snippet: "..."

Phenotype sequelae edges

phenotypes:
- name: Wheezing
  sequelae:
  - target: Respiratory Distress
  - target: Reduced Exercise Tolerance

Environmental influences_mechanisms edges

An environmental factor is only drawn once it says which mechanism it acts on. Because these edges point into the causal chain and nothing points back at them, exposures settle on the far left of the layout as the initiating steps they usually are.

environmental:
- name: Chronic ingestion of arsenic-contaminated drinking water
  influences_mechanisms:
  - target: Systemic inorganic arsenic exposure
    environmental_effect: TRIGGERS
    causal_link_type: DIRECT
    description: >-
      Sustained ingestion of contaminated groundwater is the route by which the
      systemic arsenic burden is established.
    evidence:
    - reference: PMID:21576319
      supports: SUPPORT
      snippet: "..."

environmental_effect (EnvironmentalEffectEnum) keeps the direction of the exposure honest, and drives the edge predicate:

environmental_effect Edge predicate When to use
TRIGGERS triggers The exposure initiates the mechanism
EXACERBATES exacerbates The mechanism can arise independently; the exposure worsens it
PREDISPOSES predisposes_to Raises susceptibility but is not sufficient on its own
PROTECTS_AGAINST protects_against Reduces occurrence or severity
MODULATES modulates Direction is context dependent
(omitted) influences Direction genuinely unstated in the cited evidence

Protective edges are drawn green with a dashed line and a tee head, so they never read as causal arrows. Omitting environmental_effect falls back to the neutral influences predicate rather than silently asserting causation — prefer an explicit value.

The effect also decides whether the edge counts as mechanistically explaining its target. TRIGGERS and EXACERBATES join causes/leads_to in qc_plugins.CAUSAL_PREDICATES, so an exposure curated directly onto a phenotype wires that phenotype in for compliance scoring. PREDISPOSES, PROTECTS_AGAINST, MODULATES and the bare influences fallback deliberately do not — raising susceptibility, running the other way, or declining to commit is not an explanation.

This is distinct from Pathophysiology.triggers, which hangs an ECTO exposure term directly on a mechanism node. Use triggers to annotate a node's exposure term; use influences_mechanisms to pull a disease-level environmental: entry into the graph as its own node.

The target field must match the name of another entry in any section. Unresolved targets appear as orphan nodes with dashed red borders.

Node Granularity and Debundling (case study: CSAN)

A pathograph is only as informative as the node boundaries the curator chooses. Compressing several mechanistic layers into one "gain-of-function" node produces a valid but shallow graph that hides the actual causal wiring, and any node that is not on an edge (downstream/sequelae, target_phenotypes/target_mechanisms) is dropped from the serialized graph entirely. Crouzon syndrome with acanthosis nigricans (CSAN, MONDO:0012833, recurrent FGFR3 p.Ala391Glu) is a compact worked example (issue #4158, debundled in PR #4182).

Before — a bundled four-node chain in which one node carried the variant, the receptor biophysics, and two effector branches at once, and the syndrome-defining cutaneous phenotype was present but disconnected (so invisible in the pathograph):

FGFR3 A391E Gain-of-Function
  -> Sustained MAPK/STAT signaling in suture osteoblasts
  -> Premature cranial suture fusion
  -> Craniosynostosis

After — the single receptor lesion is split into its biophysical layers and then forked into the skeletal and cutaneous phenotypes it actually drives:

FGFR3 A391E Transmembrane Dimer Stabilization
  -> Constitutive FGFR3 Kinase Autophosphorylation        # branch point
       -> FRS2-GRB2-SOS RAS-MAPK Signaling
            -> Cranial Suture Osteoblast Differentiation
                 -> Premature cranial suture fusion -> Craniosynostosis
       -> FGFR3-STAT Signaling                            # parallel effector, kept separate
       -> FGFR3 Signaling in Keratinocytes                # cutaneous fork
            -> Epidermal Hyperkeratosis and Hyperpigmentation -> Acanthosis Nigricans

Modeling rules this case study illustrates

  • One node = one mechanistic claim. Split a node when it bundles steps that have separable evidence, different cell types/locations, or different downstream targets. In CSAN, dimer stabilization (PMID:21536014, PMID:23437153) and activation-loop autophosphorylation are distinct, separately-evidenced biophysical steps, so they became two nodes rather than one "gain-of-function" node.
  • Branch at the real branch point, not at a pathway label. The activated receptor (Constitutive FGFR3 Kinase Autophosphorylation) is the node from which RAS-MAPK, STAT, and the keratinocyte branch all diverge. Modeling the fork at the receptor — rather than inside a single "MAPK/STAT" node — makes the parallel outputs explicit.
  • Do not merge parallel effectors under a pathway shorthand. STAT and ERK are parallel FGFR3 outputs with distinct biology; "MAPK/STAT" as one node hid that. Keep them as sibling nodes unless a specific downstream phenotype edge genuinely requires both inputs.
  • Connect every syndrome-defining phenotype into the graph. Acanthosis nigricans is diagnostic for CSAN but was an orphan before debundling. Adding the keratinocyte → epidermal-change → phenotype branch (and linking treatments via target_phenotypes) is what brings these nodes into the serialized pathograph.
  • Make edge confidence visible, and let it expose knowledge gaps. Edge confidence varies by layer: human genetics and craniosynostosis are strongly evidenced (causal_link_type: DIRECT / INDIRECT_KNOWN_INTERMEDIATES), whereas the keratinocyte route to flexural acanthosis is inferential (causal_link_type: INDIRECT_UNKNOWN_INTERMEDIATES, node mechanism_confidence: PROVISIONAL). Rather than overstate that edge, the cutaneous branch carries an explicit KNOWLEDGE_GAP discussion (gap_csan_cutaneous_fgfr3_branch) attached to the provisional nodes and phenotype.

When not to debundle

Granularity has a cost: a graph that expands every canonical pathway into its textbook intermediates becomes pathway-heavy and harder to read without adding disease-specific insight. Split a node only when the finer boundary carries its own evidence, its own ontology annotations, or a distinct downstream target. If an intermediate has none of those, leave it folded into the adjacent node and capture the detail in the node description instead. The goal is a graph whose node boundaries mirror the points where the causal evidence actually changes.

Dependencies

The pathograph loads two libraries via CDN:

  • D3.js v7 (https://d3js.org/d3.v7.min.js) — SVG rendering, zoom, event handling
  • dagre 0.8.5 (https://cdn.jsdelivr.net/npm/dagre@0.8.5/dist/dagre.min.js) — Hierarchical graph layout algorithm

No build step or bundling is required. The libraries load directly in the browser.

Accessibility

Each pathograph SVG includes: - role="img" attribute - <title> element with the disorder name - <desc> element describing the visualization purpose - Distinct shapes per node type (not just color-coded) - Keyboard-accessible zoom via browser native scroll

Regenerating Screenshots

The screenshot script uses Playwright with Chromium:

# Ensure D3/dagre are cached locally for headless browser
curl -sL https://d3js.org/d3.v7.min.js -o /tmp/d3.v7.min.js
curl -sL https://cdn.jsdelivr.net/npm/dagre@0.8.5/dist/dagre.min.js -o /tmp/dagre.min.js

# Render disorder pages first
uv run python -m dismech.render kb/disorders/Asthma.yaml

# Take screenshots
node scripts/screenshot_pathograph.js

Screenshots are saved to docs/images/pathograph_*.png.
