Hereditary Hypophosphatemic Rickets with Hypercalciuria

Mendelian MONDO:0009431 Pathograph 24 Show in embeddings browser Hereditary Hypophosphatemic Rickets Metabolic Bone Disorders

Hereditary hypophosphatemic rickets with hypercalciuria (HHRH) is an autosomal recessive renal phosphate-wasting disorder caused by biallelic loss-of-function variants in SLC34A3, which encodes the proximal-tubule sodium-phosphate cotransporter NaPi-IIc (NPT2c). Reduced tubular phosphate reabsorption causes hypophosphatemia, rickets or osteomalacia, limb bowing, short stature, bone pain and muscle weakness. Unlike X-linked and other FGF23-mediated hypophosphatemias, FGF23 is normal or low, so hypophosphatemia raises calcitriol appropriately. The elevated calcitriol increases intestinal calcium absorption and suppresses parathyroid hormone, producing hypercalciuria, nephrocalcinosis and kidney stones. Kidney and bone phenotypes do not always coexist, and heterozygous carriers frequently show an intermediate biochemical phenotype with isolated hypercalciuria. Oral phosphate monotherapy is standard care; active vitamin D analogues, the mainstay in FGF23-mediated disease, are avoided because they worsen hypercalciuria.

Ask OpenScientist

Ask a research question about Hereditary Hypophosphatemic Rickets with Hypercalciuria. OpenScientist will conduct autonomous deep research using the Disorder Mechanisms Knowledge Base and PubMed literature (typically 10-30 minutes).

Submitting...

Do not include personal health information in your question. Questions and results are cached in your browser's local storage.

2
Inheritance
7
Pathophys.
16
Phenotypes
24
Pathograph
2
Genes
1
Medical Actions
2
Models
13
References
1
Deep Research
🏷

Classifications

Harrison's Part
ENDOCRINOLOGY METABOLISM GENETICS ENVIRONMENT DISEASE
ISDS Skeletal Nosology
abnormal mineralization
👪

Inheritance

2
Autosomal recessive inheritance HP:0000007
Homozygous or compound heterozygous SLC34A3 variants cause HHRH. Heterozygous carriers frequently have an intermediate biochemical phenotype, most often isolated hypercalciuria.
Autosomal recessive inheritance
Show evidence (1 reference)
PMID:16358214 SUPPORT BACKGROUND Human Clinical
"Hereditary hypophosphatemic rickets with hypercalciuria (HHRH) is a rare disorder of autosomal recessive inheritance that was first described in a large consanguineous Bedouin kindred."
States the recessive inheritance of HHRH.
Digenic inheritance HP:0010984
One kindred shows apparently dominant transmission through heterozygous variants in SLC34A3 and SLC34A1 together; carriers of both were more severely affected than carriers of either alone.
Digenic inheritance
Show evidence (1 reference)
DOI:10.1210/clinem/dgaa217 SUPPORT PRIMARY RESULT Human Clinical
"The proband and her affected sister inherited both gene mutations from their mother, while their clinically less affected brother, father, and paternal grandmother carried only the SLC34A3 mutation."
Joint transmission of the two heterozygous variants segregates with the more severe phenotype.
⚙

Pathophysiology

7
Biallelic SLC34A3 Loss of Function
Homozygous or compound heterozygous SLC34A3 variants remove or reduce NaPi-IIc sodium-phosphate cotransport at the proximal-tubule brush border. Alleles include truncating frameshifts such as the founder c.228delC, splice-site and intronic deletions causing aberrant splicing, and missense variants. Missense alleles act by different routes: some are retained in the endoplasmic reticulum, while others reach the cell surface but are degraded faster or transport phosphate with reduced maximal velocity.
epithelial cell of proximal tubule CL:0002306 Cell Ontology (CL) Relation: this pathophysiological event involves this cell type This pathophysiological event involves epithelial cell of proximal tubule (CL:0002306). CL:0002306 is a cell type from the Cell Ontology.
SLC34A3 hgnc:20305 HUGO Gene Nomenclature Committee (hgnc) Relation: this pathophysiological event involves this gene This pathophysiological event involves SLC34A3 (hgnc:20305). hgnc:20305 is a gene from the HUGO Gene Nomenclature Committee.
Genetic context SLC34A3 hgnc:20305 HUGO Gene Nomenclature Committee (hgnc) Relation: this genetic context concerns this gene This genetic context concerns SLC34A3 (hgnc:20305). hgnc:20305 is a gene from the HUGO Gene Nomenclature Committee. variant_origin: GERMLINE functional_impact_category: LOSS_OF_FUNCTION
Biallelic germline loss of function; homozygous or compound heterozygous.
NaPi-IIc sodium-phosphate cotransport GO:0005436 ↓ DECREASED Gene Ontology (GO) Relation: this pathophysiological event involves this molecular function This pathophysiological event involves decreased NaPi-IIc sodium-phosphate cotransport, annotated with sodium:phosphate symporter activity (GO:0005436). GO:0005436 is a molecular function from the Gene Ontology.
Downstream
Renal Phosphate Wasting Loss of NaPi-IIc reduces proximal-tubule phosphate reabsorption.
Show evidence (5 references)

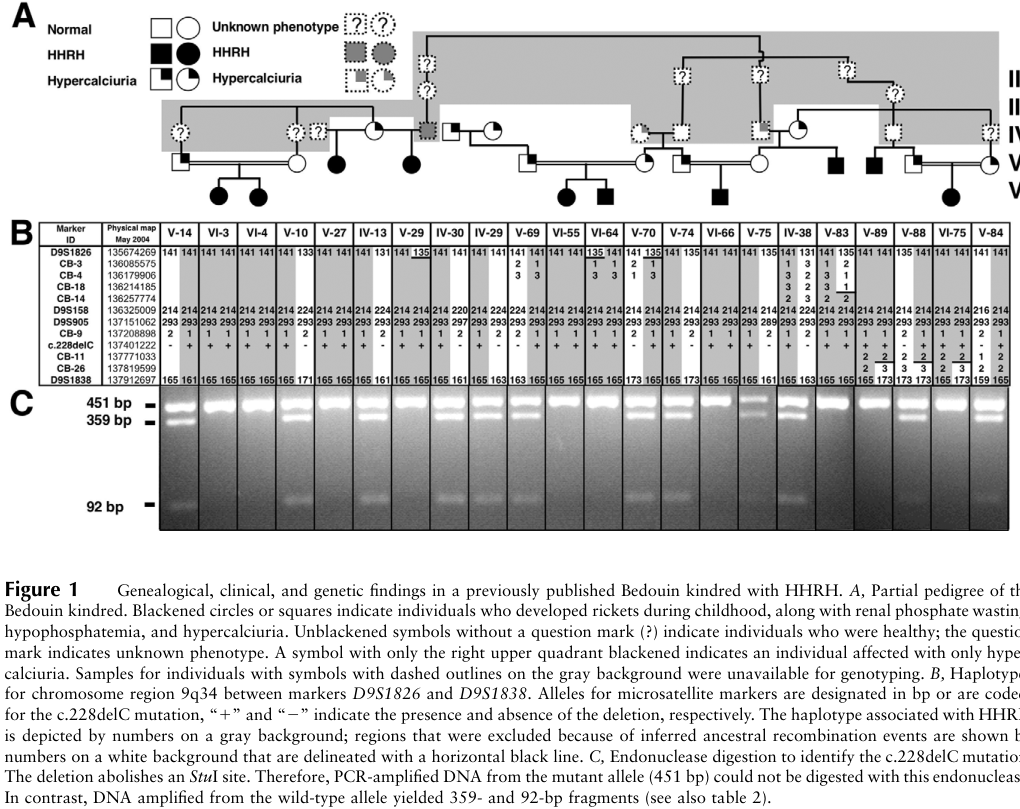

PMID:16358214 SUPPORT PRIMARY RESULT Human Clinical
"This mutation is predicted to truncate the NaP(i)-IIc protein in the first membrane-spanning domain and thus likely results in a complete loss of function of this protein in individuals homozygous for c.228delC."
The founder allele in the original kindred is a truncating loss-of-function variant.
PMID:16358215 SUPPORT PRIMARY RESULT Human Clinical
"Sequencing of this gene revealed disease-associated mutations in five families, including two frameshift and one splice-site mutation."
Independent simultaneous identification of SLC34A3 variants in HHRH families.
PMID:22159077 SUPPORT PRIMARY RESULT In Vitro
"Mutations S138F, G196R, R468W, R564C, and c.228delC in human NaPi-IIc significantly decreased the levels of NaPi cotransport activities in Xenopus oocytes."
Direct functional demonstration that HHRH alleles reduce sodium-phosphate cotransport.
+ 2 more references
Renal Phosphate Wasting
Proximal-tubule phosphate reabsorption is reduced, so the ratio of maximal tubular phosphate reabsorption to glomerular filtration rate (TmP/GFR) falls. This primary renal leak persists under phosphate supplementation, which corrects the other abnormalities without restoring TmP/GFR.
epithelial cell of proximal tubule CL:0002306 Cell Ontology (CL) Relation: this pathophysiological event involves this cell type This pathophysiological event involves epithelial cell of proximal tubule (CL:0002306). CL:0002306 is a cell type from the Cell Ontology.
renal phosphate reabsorption GO:0097291 ↓ DECREASED Gene Ontology (GO) Relation: this pathophysiological event involves this biological process This pathophysiological event involves decreased renal phosphate reabsorption, annotated with renal phosphate ion absorption (GO:0097291). GO:0097291 is a biological process from the Gene Ontology.
Animal models
Npt2c-null mouse Mouse fails to recapitulate Single Npt2c knockout shows no renal phosphate wasting.
Downstream
Systemic Phosphate Depletion Urinary phosphate loss lowers serum phosphate.
Hyperphosphaturia The reabsorption defect appears as inappropriately high urinary phosphate excretion.
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"The characteristic features are rickets, short stature, increased renal phosphate clearance"
Increased renal phosphate clearance (TmP/GFR 2 to 4 SD below the age-related mean) in the original kindred.
Systemic Phosphate Depletion
Chronic hypophosphatemia limits phosphate supply for mineralization (the phosphopenic arm of the defective skeletal mineralization module) and, because FGF23 is not raised, acts as the stimulus for increased calcitriol production.
phosphate ion homeostasis GO:0055062 ⚠ ABNORMAL Gene Ontology (GO) Relation: this pathophysiological event involves this biological process This pathophysiological event involves abnormal phosphate ion homeostasis (GO:0055062). GO:0055062 is a biological process from the Gene Ontology.
Downstream
Hypophosphatemia Systemic phosphate depletion is measured as hypophosphatemia.
FGF23-Independent Calcitriol Elevation With FGF23 normal or low, hypophosphatemia raises 1,25-dihydroxyvitamin D appropriately.
Impaired Skeletal Mineralization Low phosphate supply impairs hydroxyapatite deposition in growth plate and bone.
Show evidence (1 reference)
PMID:16358214 SUPPORT BACKGROUND Human Clinical
"HHRH is characterized by the presence of hypophosphatemia secondary to renal phosphate wasting"
Hypophosphatemia is secondary to the renal leak.
FGF23-Independent Calcitriol Elevation
FGF23 is normal or low-normal in HHRH, so it does not restrain the renal calcitriol response to hypophosphatemia. Serum 1,25-dihydroxyvitamin D is therefore raised, which distinguishes HHRH from FGF23-mediated hypophosphatemias where calcitriol is low or inappropriately normal.
FGF23 hgnc:3680 HUGO Gene Nomenclature Committee (hgnc) Relation: this pathophysiological event involves this gene This pathophysiological event involves FGF23 (hgnc:3680). hgnc:3680 is a gene from the HUGO Gene Nomenclature Committee.
Downstream
Elevated circulating calcitriol The response is measured as raised serum 1,25-dihydroxyvitamin D.
Calcitriol-Driven Calcium Hyperabsorption Raised calcitriol increases intestinal calcium absorption.
Show evidence (4 references)
PMID:38364990 SUPPORT BACKGROUND Human Clinical
"Characteristically and appropriately suppressed fibroblast growth factor 23 (FGF23) causes elevated 1,25-dihydroxy vitamin D (1,25(OH)2D)"
States the causal step from suppressed FGF23 to raised calcitriol.
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"FGF23 was significantly decreased in comp/hom and het as compared to wild type"
Pooled measurement showing FGF23 is lower, not raised, in carriers.
PMID:16358215 SUPPORT PRIMARY RESULT Human Clinical
"is at normal or low-normal serum levels in the patients with HHRH, further supporting a primary renal defect"
FGF23 is not elevated in HHRH.
+ 1 more reference
Calcitriol-Driven Calcium Hyperabsorption
Elevated calcitriol increases intestinal calcium absorption, raising the filtered calcium load. The calcium load also suppresses parathyroid hormone, which acts on the kidney in the next node. This is an absorptive hypercalciuria with normal serum calcium. GO has no calcium-specific child of intestinal absorption (GO:0050892), so the calcium specificity is carried in preferred_term.
enterocyte CL:0000584 Cell Ontology (CL) Relation: this pathophysiological event involves this cell type This pathophysiological event involves enterocyte (CL:0000584). CL:0000584 is a cell type from the Cell Ontology.
intestinal calcium absorption GO:0050892 ↑ INCREASED Gene Ontology (GO) Relation: this pathophysiological event involves this biological process This pathophysiological event involves increased intestinal calcium absorption, annotated with intestinal absorption (GO:0050892). GO:0050892 is a biological process from the Gene Ontology.
Downstream
Hypercalciuria Increased absorbed calcium raises the filtered load and urinary calcium excretion.
Nephrocalcinosis Chronic hypercalciuria from calcitriol-driven calcium hyperabsorption deposits calcium in the renal parenchyma.
Nephrolithiasis The same hypercalciuria predisposes to calcium kidney stones.
Decreased circulating parathyroid hormone The calcium load suppresses parathyroid hormone secretion.
Reduced PTH-Dependent Distal Tubular Calcium Reabsorption Suppressed PTH removes its stimulus to distal-tubule calcium reabsorption.
Show evidence (2 references)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"increased gastrointestinal absorption of calcium and phosphorus"
Measured increase in intestinal calcium absorption.
PMID:30109410 SUPPORT REVIEW SYNTHESIS Other
"The elevated 1,25(OH)2D levels in turn result in hypercalciuria due to enhanced intestinal calcium absorption and reduced parathyroid hormone (PTH)-dependent calcium-reabsorption in the distal renal tubules"
States both arms of the hypercalciuria mechanism.
Reduced PTH-Dependent Distal Tubular Calcium Reabsorption
With parathyroid hormone suppressed, distal-tubule calcium reabsorption falls, so more of the filtered calcium is excreted. This is the renal arm of the hypercalciuria, alongside the intestinal arm. GO has no renal calcium-ion absorption term (the children of renal absorption, GO:0070293, cover glucose, sodium, water, protein, phosphate and amino acids), so no process is bound here.
distal convoluted tubule epithelial cell CL:1000849 Cell Ontology (CL) Relation: this pathophysiological event involves this cell type This pathophysiological event involves distal convoluted tubule epithelial cell, annotated with kidney distal convoluted tubule epithelial cell (CL:1000849). CL:1000849 is a cell type from the Cell Ontology.
Downstream
Hypercalciuria Less distal reabsorption adds to urinary calcium excretion.
Show evidence (2 references)
PMID:30109410 SUPPORT REVIEW SYNTHESIS Other
"reduced parathyroid hormone (PTH)-dependent calcium-reabsorption in the distal renal tubules"
Names the renal arm of the hypercalciuria.
PMID:38364990 SUPPORT BACKGROUND Human Clinical
"which results in hypercalciuria because of enhanced intestinal calcium absorption and reduced parathyroid hormone (PTH) - dependent calcium reabsorption in the distal renal tubules"
Independent statement of the same two-arm mechanism.
Impaired Skeletal Mineralization
Phosphate deficiency impairs mineralization of growth-plate cartilage and bone matrix, producing rickets in children and osteomalacia in adults. Bone involvement is not universal: some biallelic probands, particularly those carrying c.575C>T p.(Ser192Leu), present with kidney findings only.
osteoblast CL:0000062 Cell Ontology (CL) Relation: this pathophysiological event involves this cell type This pathophysiological event involves osteoblast (CL:0000062). CL:0000062 is a cell type from the Cell Ontology.
bone mineralization GO:0030282 ↓ DECREASED Gene Ontology (GO) Relation: this pathophysiological event involves this biological process This pathophysiological event involves decreased bone mineralization (GO:0030282). GO:0030282 is a biological process from the Gene Ontology.
Animal models
Npt2a/Npt2c double-knockout mouse Mouse partially recapitulates Double knockout develops hypophosphatemic rickets rescued by dietary phosphate.
Downstream
Reduced bone mineral density Undermineralized bone reads as low areal BMD; phosphate repletion can improve it.
Rickets Defective growth-plate mineralization in children.
Osteomalacia Defective bone-matrix mineralization after growth-plate closure.
Bowing of the legs Soft, undermineralized long bones deform under load.
Short stature Rickets impairs longitudinal growth.
Bone pain Undermineralized bone is painful.
Show evidence (3 references)
PMID:16358214 SUPPORT BACKGROUND Human Clinical
"radiographic and/or histological evidence of rickets, limb deformities, muscle weakness, and bone pain"
Documents the skeletal mineralization defect.
PMID:37981601 SUPPORT PRIMARY RESULT Human Clinical
"c.575C > T p.(Ser192Leu) variant occurred in 53% of probands without skeletal involvement."
Bone involvement is variable and partly allele-dependent.
PMID:38642991 SUPPORT REVIEW SYNTHESIS Human Clinical
"kidney and bone phenotypes generally do not coexist"
Commentary on the 304-person pooled analysis, supporting that bone involvement is not universal.
⬡

Pathograph

Use the checkboxes to hide or show graph categories. Hover nodes for evidence and cross-linked metadata.
Pathograph: causal mechanism network for Hereditary Hypophosphatemic Rickets with Hypercalciuria Interactive directed graph showing how pathophysiology mechanisms, phenotypes, genetic factors and variants, experimental models, environmental triggers, and treatments relate through causal and linked edges.
●

Phenotypes

16
Endocrine 1
Decreased circulating parathyroid hormone Decreased circulating parathyroid hormone level HP:0031817 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Suppressed parathyroid hormone, annotated with Decreased circulating parathyroid hormone level (HP:0031817). HP:0031817 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"suppressed parathyroid function (an immunoreactive parathyroid hormone level of 0.33 +/- 0.1 ng per milliliter"
Measured parathyroid suppression.
Genitourinary 5
Hyperphosphaturia HP:0003109 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Renal phosphate wasting, annotated with Hyperphosphaturia (HP:0003109). HP:0003109 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"The characteristic features are rickets, short stature, increased renal phosphate clearance"
Increased renal phosphate clearance is a characteristic feature.
Hypercalciuria VERY_FREQUENT HP:0002150 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Hypercalciuria (HP:0002150). HP:0002150 is a phenotype from the Human Phenotype Ontology.
Show evidence (2 references)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"hypercalciuria (8.6 mg of urinary calcium per kilogram of body weight per 24 hours vs. the upper normal value of 4.0), normal serum calcium levels"
Quantified hypercalciuria with normal serum calcium.
PMID:37981601 SUPPORT PRIMARY RESULT Human Clinical
"had a spectrum from rickets/osteomalacia to normal BMD, with hypophosphatemia and hypercalciuria in all"
Hypercalciuria present in all nine biallelic subjects of a single-center series.
Nephrocalcinosis FREQUENT HP:0000121 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Nephrocalcinosis (HP:0000121). HP:0000121 is a phenotype from the Human Phenotype Ontology.
Show evidence (4 references)
PMID:30109410 SUPPORT REVIEW SYNTHESIS Other
"leading to the development of kidney stones and/or nephrocalcinosis in approximately half of the individuals with HHRH"
Frequency of renal calcification in HHRH.
PMID:37981601 SUPPORT PRIMARY RESULT Human Clinical
"early-onset HHRH and renal calcification were present in ~ 70% and late-onset HHRH in 10%"
Systematic review of 58 biallelic probands.
PMID:35689455 SUPPORT PRIMARY RESULT Human Clinical
"Calcium excretion and 1,25-OH2 -D3 levels, but not TRP, were associated with nephrocalcinosis."
Ties nephrocalcinosis to the calcitriol-hypercalciuria arm.
+ 1 more reference
Nephrolithiasis HP:0000787 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Nephrolithiasis (HP:0000787). HP:0000787 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:30109410 SUPPORT REVIEW SYNTHESIS Other
"leading to the development of kidney stones and/or nephrocalcinosis in approximately half of the individuals with HHRH"
Kidney stones are a recognized renal complication.
Renal cyst OCCASIONAL HP:0000107 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Renal cyst (HP:0000107). HP:0000107 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"11% among those 79 comp/hom individuals and 2% out of those 89 het individuals"
Pooled frequency of renal cysts among carriers with renal imaging.
Limbs 1
Bowing of the legs HP:0002979 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Bowing of the legs (HP:0002979). HP:0002979 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:30109410 SUPPORT REVIEW SYNTHESIS Other
"These mutations result in the development of urinary phosphate (Pi) wasting and hypophosphatemic rickets, bowing, and short stature"
Bowing is a recognized skeletal feature.
Metabolism 2
Hypophosphatemia VERY_FREQUENT HP:0002148 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Hypophosphatemia (HP:0002148). HP:0002148 is a phenotype from the Human Phenotype Ontology.
Show evidence (2 references)
PMID:16358214 SUPPORT BACKGROUND Human Clinical
"HHRH is characterized by the presence of hypophosphatemia secondary to renal phosphate wasting"
Hypophosphatemia is a cardinal feature.
PMID:37981601 SUPPORT PRIMARY RESULT Human Clinical
"had a spectrum from rickets/osteomalacia to normal BMD, with hypophosphatemia and hypercalciuria in all"
Hypophosphatemia in all nine biallelic subjects, supporting the very frequent qualifier.
Elevated circulating calcitriol Elevated circulating calcitriol concentration HP:0031415 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Elevated serum 1,25-dihydroxyvitamin D, annotated with Elevated circulating calcitriol concentration (HP:0031415). HP:0031415 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"an elevated serum concentration of 1,25-dihydroxyvitamin D (390 +/- 99 pg per milliliter vs. the upper normal value of 110)"
Measured calcitriol elevation.
Musculoskeletal 5
Rickets HP:0002748 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Rickets (HP:0002748). HP:0002748 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"The characteristic features are rickets, short stature, increased renal phosphate clearance"
Rickets in the original kindred.
Osteomalacia HP:0002749 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Osteomalacia (HP:0002749). HP:0002749 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:16849419 SUPPORT BACKGROUND Human Clinical
"is a rare metabolic disorder, characterized by hypophosphatemia and rickets/osteomalacia with increased serum 1,25-dihydroxyvitamin D"
Osteomalacia is part of the bone phenotype.
Fractures OCCASIONAL Increased susceptibility to fractures HP:0002659 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Increased susceptibility to fractures (HP:0002659). HP:0002659 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"monoallelic SLC34A3 pathogenic variants should be considered in the differential diagnosis of patients with (stress) fractures and low bone density"
Fractures are part of the carrier bone phenotype the authors flag for diagnosis.
Muscle weakness HP:0001324 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Muscle weakness (HP:0001324). HP:0001324 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:16358214 SUPPORT BACKGROUND Human Clinical
"radiographic and/or histological evidence of rickets, limb deformities, muscle weakness, and bone pain"
Muscle weakness is a characteristic feature.
Reduced bone mineral density HP:0004349 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Reduced bone mineral density (HP:0004349). HP:0004349 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:35689455 SUPPORT PRIMARY RESULT Human Clinical
"aBMD Z-score <-2.0 was revealed in 4 of 8 heterozygous carriers"
Low BMD extends to heterozygous carriers.
Constitutional 1
Bone pain HP:0002653 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Bone pain (HP:0002653). HP:0002653 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:16358214 SUPPORT BACKGROUND Human Clinical
"radiographic and/or histological evidence of rickets, limb deformities, muscle weakness, and bone pain"
Bone pain is a characteristic feature.
Growth 1
Short stature HP:0004322 Human Phenotype Ontology (HP) Relation: this clinical feature is this phenotype This clinical feature is Short stature (HP:0004322). HP:0004322 is a phenotype from the Human Phenotype Ontology.
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"The characteristic features are rickets, short stature, increased renal phosphate clearance"
Short stature in the original kindred.
🧬

Genetic Associations

2
Biallelic SLC34A3 Pathogenic Variants (Causative)
Gene: SLC34A3 hgnc:20305 HUGO Gene Nomenclature Committee (hgnc) Relation: this disease-associated gene is this gene This disease-associated gene is SLC34A3 (hgnc:20305). hgnc:20305 is a gene from the HUGO Gene Nomenclature Committee. relationship_type: CAUSATIVE variant_origin: GERMLINE
Autosomal recessive inheritance
Show evidence (3 references)
PMID:16358215 SUPPORT PRIMARY RESULT Human Clinical
"Sequencing of this gene revealed disease-associated mutations in five families, including two frameshift and one splice-site mutation."
Independent identification of SLC34A3 as the causal gene.
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"Compound heterozygous/homozygous carriers show above 90% penetrance for kidney and bone phenotypes."
Penetrance in biallelic carriers.
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"urine calcium excretion causing idiopathic hypercalciuria in 38%, with bone phenotypes still observed in 23% of patients"
Intermediate phenotype in heterozygous carriers.
SLC34A1 Heterozygous Variant in Digenic Inheritance (Modifier)
Gene: SLC34A1 hgnc:11019 gene page HUGO Gene Nomenclature Committee (hgnc) Relation: this disease-associated gene is this gene This disease-associated gene is SLC34A1 (hgnc:11019). hgnc:11019 is a gene from the HUGO Gene Nomenclature Committee. relationship_type: MODIFIER variant_origin: GERMLINE
Show evidence (2 references)
DOI:10.1210/clinem/dgaa217 SUPPORT PRIMARY RESULT Human Clinical
"We describe a kindred with autosomal dominant hypophosphatemic rickets in which whole exome analysis identified digenic heterozygous mutations in SLC34A1 and SLC34A3."
Digenic SLC34A1/SLC34A3 heterozygosity producing an HHRH-like phenotype.
DOI:10.1210/clinem/dgaa217 SUPPORT PRIMARY RESULT Human Clinical
"Subjects with both mutations were more severely affected than subjects carrying only one mutation."
Gene dosage effect of the second locus.
💊

Medical Actions

1
Oral Phosphate Monotherapy
Category: Therapeutic Action: PharmacotherapyNCI Thesaurus (NCIT) Relation: this treatment is this clinical intervention This treatment is Pharmacotherapy (NCIT:C15986). NCIT:C15986 is a clinical intervention from the NCI Thesaurus. NCIT:C15986
Agent: oral phosphate CHEBI:26020 Chemical Entities of Biological Interest (CHEBI) Relation: this treatment uses this therapeutic agent This treatment uses oral phosphate, annotated with phosphate (CHEBI:26020). CHEBI:26020 is a therapeutic agent from Chemical Entities of Biological Interest.
Platform: Small molecule
Oral phosphate supplementation alone is standard care and typically normalizes serum phosphate. In the original kindred it reversed the clinical and biochemical abnormalities except the renal phosphate leak itself. In a pooled analysis it corrected hypophosphatemia in more than half of individuals but often did not resolve kidney or bone outcomes, and response depended on genotype and baseline TRP. Active vitamin D analogues are contraindicated, because calcitriol is already raised and they would worsen the hypercalciuria. Phosphate supplementation can raise PTH, and secondary hyperparathyroidism has developed on treatment, so PTH is monitored. Long-term data on preventing renal calcification are lacking.
Mechanism Target:
RESTORES Systemic Phosphate Depletion — Replaces the phosphate lost in urine, restoring serum phosphate without correcting the tubular leak.
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"Long-term phosphate supplementation as the sole therapy resulted in reversal of all clinical and biochemical abnormalities except the decreased TmP/GFR."
Phosphate repletion corrects the downstream abnormalities but not the renal defect.
Show evidence (3 references)
PMID:30109410 SUPPORT REVIEW SYNTHESIS Other
"Treatment of HHRH and IH consists of monotherapy with oral Pi supplements, while active vitamin D analogs are contraindicated, mainly because the endogenous 1,25(OH)2D levels are already elevated but also to prevent further worsening of the hypercalciuria."
Standard of care and the contraindication to active vitamin D.
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"However, although in more than half of individuals this therapy achieves correction of hypophosphatemia it fails to resolve the other outcomes."
Limits of phosphate monotherapy in the pooled cohort.
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"phosphate supplementation increases iPTH in 22 individuals, and frank secondary hyperparathyroidism developed in three comp/hom and one het individual"
Basis for monitoring PTH during phosphate therapy.
🔬

Biochemical Markers

8
Serum Phosphate (Decreased or low-normal)
Context: Fasting, against age-specific reference intervals; usually corrected by oral phosphate. A normal value does not exclude biallelic SLC34A3 disease.
Show evidence (2 references)
DOI:10.3389/fendo.2021.736240 SUPPORT PRIMARY RESULT Human Clinical
"a normal phosphatemia was reported in 2 patients with biallelic mutations in SLC34A3"
Biallelic carriers ascertained through a vitamin D hypersensitivity work-up can be normophosphatemic.
PMID:37981601 SUPPORT PRIMARY RESULT Human Clinical
"had a spectrum from rickets/osteomalacia to normal BMD, with hypophosphatemia and hypercalciuria in all"
Hypophosphatemia in all biallelic subjects of the series.
Tubular Phosphate Reabsorption (TRP and TmP/GFR) (Decreased)
Context: Calculated from paired fasting serum and spot urine phosphate and creatinine; TmP/GFR from the Walton-Bijvoet nomogram. TmP/GFR stays low under phosphate therapy because the tubular defect persists.
Show evidence (1 reference)
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"Pooled phenotypic analysis showed serum phosphate and TmP/GFR (Figure 2a-b) significantly decreased in het and comp/hom carriers of SLC34A3 pathogenic variants when compared to wild type"
Reduced TmP/GFR in the pooled carrier cohort.
FGF23 (Normal, low-normal or decreased)
Show evidence (2 references)
PMID:16358215 SUPPORT PRIMARY RESULT Human Clinical
"is at normal or low-normal serum levels in the patients with HHRH, further supporting a primary renal defect"
FGF23 is not raised in HHRH.
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"FGF23 was significantly decreased in comp/hom and het as compared to wild type"
Pooled measurement showing reduced FGF23 in carriers.
1,25-Dihydroxyvitamin D (High-normal or elevated)
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"an elevated serum concentration of 1,25-dihydroxyvitamin D (390 +/- 99 pg per milliliter vs. the upper normal value of 110)"
Elevated calcitriol in the original kindred.
Urinary Calcium Excretion (Increased)
Context: Fasting spot urinary calcium/creatinine ratio or 24-hour urinary calcium.
Show evidence (1 reference)
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"serum 1,25(OH)2D and urine calcium excretion (Figure 2d-e) were significantly increased in het and comp/hom carriers when compared to wild type"
Raised urinary calcium excretion across carriers.
Intact Parathyroid Hormone (Low or low-normal)
Context: Monitor during phosphate supplementation, which can raise PTH.
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"suppressed parathyroid function (an immunoreactive parathyroid hormone level of 0.33 +/- 0.1 ng per milliliter"
Suppressed PTH in the original kindred.
Serum Calcium (Normal)
Show evidence (1 reference)
PMID:2983203 SUPPORT PRIMARY RESULT Human Clinical
"hypercalciuria (8.6 mg of urinary calcium per kilogram of body weight per 24 hours vs. the upper normal value of 4.0), normal serum calcium levels"
Normal serum calcium despite hypercalciuria.
Alkaline Phosphatase (Increased in biallelic carriers)
Show evidence (1 reference)
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"iPTH was decreased and serum ALP was increased in comp/hom carriers compared to het carriers"
Higher ALP and lower PTH in biallelic than heterozygous carriers.
🔬

Diagnosis

3
Clinical and Biochemical Evaluation for FGF23-Independent Phosphate Wasting
Evaluate rickets, osteomalacia, low bone density, fractures, nephrocalcinosis or kidney stones with fasting serum phosphate, calcium, alkaline phosphatase, intact PTH, 25-hydroxyvitamin D, 1,25-dihydroxyvitamin D and FGF23, paired fasting spot urine for TRP and TmP/GFR (Walton-Bijvoet nomogram), and urinary calcium/creatinine ratio. The HHRH pattern is low phosphate and TmP/GFR with normal or low FGF23, high-normal or raised calcitriol, low PTH, hypercalciuria and normal serum calcium. This separates it from FGF23-mediated hypophosphatemias (X-linked, ADHR, ARHR, tumor-induced osteomalacia), where calcitriol is low or inappropriately normal and calciuria is not raised. Incidentally detected nephrocalcinosis should prompt assessment of renal phosphate handling once primary hyperparathyroidism is excluded. C-terminal FGF23 can be raised by unrelated causes such as iron deficiency, which has led to misdiagnosis as tumor-induced osteomalacia. The high-calcitriol, low-PTH, hypercalciuric pattern overlaps with CYP24A1- and SLC34A1-related infantile hypercalcemia, so patients investigated for vitamin D hypersensitivity should also have SLC34A3 analysed.
Clinical Evaluation NCIT:C124351 NCI Thesaurus (NCIT)
Results: Hypophosphatemia with reduced TmP/GFR, non-elevated FGF23, raised calcitriol and hypercalciuria suggests HHRH or the heterozygous SLC34A3 trait; molecular testing confirms it.
Show evidence (5 references)
PMID:35689455 SUPPORT PRIMARY RESULT Human Clinical
"Reduced to low-normal phosphate levels, decreased tubular reabsorption of phosphate (TRP), and high-normal to elevated values of 1,25-OH2 -D3 accompanied by normal cFGF23 levels were revealed independently of mutational status."
The biochemical profile that identifies SLC34A3-related phosphate wasting.
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"Urine phosphate excretion (TmP/GFR or TRP (%)) and urinary calcium/creatinine ratio (U-Ca/Crea) were determined in fasting spot urines."
The urine measurements used to establish renal phosphate wasting and hypercalciuria.
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"its incidental detection should prompt an evaluation of renal phosphate handling once more common causes such as primary hyperparathyroidism are excluded"
Nephrocalcinosis as an entry point to the diagnostic work-up.
+ 2 more references
SLC34A3 Molecular Genetic Testing
Sequence SLC34A3 within a hereditary hypophosphatemia panel or exome, which also covers PHEX, FGF23, DMP1, ENPP1 and the other phosphate-transporter genes. Intronic deletions causing aberrant splicing are a known allele class and need methods that detect them. Monoallelic pathogenic variants are clinically relevant (isolated hypercalciuria, renal calcification and low bone density) and should be considered in patients with fractures or low bone density.
Genetic Testing NCIT:C15709 NCI Thesaurus (NCIT)
Results: Homozygous or compound heterozygous pathogenic SLC34A3 variants confirm HHRH; a single pathogenic variant indicates the heterozygous trait.
Show evidence (3 references)
PMID:35689455 SUPPORT PRIMARY RESULT Human Clinical
"In 8 index patients and 5 family members, genetic analysis was performed using a custom gene panel."
Panel-based genetic testing in a clinical series.
PMID:16849419 SUPPORT PRIMARY RESULT Human Clinical
"The intron 9 deletion (and likely the other two mutations) identified in this study causes aberrant RNA splicing."
Intronic alleles must be covered by the testing method.
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"monoallelic SLC34A3 pathogenic variants should be considered in the differential diagnosis of patients with (stress) fractures and low bone density"
Supports testing in patients presenting with fractures or low bone density.
Renal Imaging for Nephrocalcinosis and Stones
Renal ultrasound (or abdominal CT) identifies nephrocalcinosis, kidney stones and renal cysts, which are frequent in biallelic and heterozygous carriers and increase with age.
renal ultrasonography NCIT:C159885 NCI Thesaurus (NCIT)
Show evidence (1 reference)
PMID:38364990 SUPPORT PRIMARY RESULT Human Clinical
"Renal ultrasound or abdominal CT was used to determine renal phenotype including nephrocalcinosis, renal stones and/or renal cysts."
The imaging used to establish the renal phenotype.
📊

Prevalence

1
Worldwide
Point Prevalence 0.4 per 100,000 1–9 per 1,000,000
Estimated prevalence of 1 in 250,000, stated in a 2019 review without a cited population study; treat as an order-of-magnitude estimate.
Show evidence (1 reference)
PMID:30109410 SUPPORT REVIEW SYNTHESIS Other
"is a rare autosomal recessive disorder with an estimated prevalence of 1:250,000"
Source of the 1 in 250,000 estimate (0.4 per 100,000).
🐁

Animal Models

2
Npt2c-null mouse
Mice lacking Npt2c alone do not waste phosphate on a normal-phosphate diet, unlike human HHRH.
Species
Mouse
Genotype
Slc34a3 (Npt2c) homozygous null
Genes
Slc34a3 hgnc:20305 HUGO Gene Nomenclature Committee (hgnc) Relation: this experimental model concerns this gene This experimental model concerns Slc34a3 (hgnc:20305). hgnc:20305 is a gene from the HUGO Gene Nomenclature Committee.
Publication
PMID:19570882
Pathograph links
Renal Phosphate Wasting fails to recapitulate fidelity: low observes: organism Single Npt2c knockout shows no renal phosphate wasting.
Limitations: In mice Npt2a carries most proximal-tubule phosphate reabsorption, so Npt2c loss alone is compensated; in humans NPT2c loss is sufficient to cause phosphate wasting. The species difference in transporter dependence limits the single knockout as an HHRH model.
Show evidence (1 reference)
PMID:19570882 SUPPORT PRIMARY RESULT Model Organism
"mice that are null for Npt2c (Npt2c(-/-)) show no evidence for renal phosphate wasting when maintained on a diet with a normal phosphate content"
The negative result defining the mismatch.
Npt2a/Npt2c double-knockout mouse
Combined loss of Npt2a and Npt2c reproduces severe hypophosphatemia, hypercalciuria and rickets, and a high-phosphate diet rescues phosphate and bone.
Species
Mouse
Genotype
Slc34a1 (Npt2a) and Slc34a3 (Npt2c) homozygous null
Genes
Slc34a3 hgnc:20305 HUGO Gene Nomenclature Committee (hgnc) Relation: this experimental model concerns this gene This experimental model concerns Slc34a3 (hgnc:20305). hgnc:20305 is a gene from the HUGO Gene Nomenclature Committee. Slc34a1 hgnc:11019 HUGO Gene Nomenclature Committee (hgnc) Relation: this experimental model concerns this gene This experimental model concerns Slc34a1 (hgnc:11019). hgnc:11019 is a gene from the HUGO Gene Nomenclature Committee.
Publication
PMID:19570882
Pathograph links
Impaired Skeletal Mineralization partially recapitulates fidelity: moderate observes: organism Double knockout develops hypophosphatemic rickets rescued by dietary phosphate.
Limitations: Requires loss of a second transporter (Npt2a) that is intact in human HHRH, so the model reflects the combined deficit rather than the human single-gene lesion.
Show evidence (1 reference)
PMID:19570882 SUPPORT PRIMARY RESULT Model Organism
"DKO mice exhibited severe hypophosphatemia, hypercalciuria, and rickets."
The double knockout reproduces the human triad.
{ }

Source YAML

click to show
name: Hereditary Hypophosphatemic Rickets with Hypercalciuria
creation_date: "2026-10-11T00:00:00Z"
category: Mendelian
description: >-
  Hereditary hypophosphatemic rickets with hypercalciuria (HHRH) is an autosomal recessive renal
  phosphate-wasting disorder caused by biallelic loss-of-function variants in SLC34A3, which encodes the
  proximal-tubule sodium-phosphate cotransporter NaPi-IIc (NPT2c). Reduced tubular phosphate reabsorption
  causes hypophosphatemia, rickets or osteomalacia, limb bowing, short stature, bone pain and muscle weakness.
  Unlike X-linked and other FGF23-mediated hypophosphatemias, FGF23 is normal or low, so hypophosphatemia
  raises calcitriol appropriately. The elevated calcitriol increases intestinal calcium absorption and suppresses
  parathyroid hormone, producing hypercalciuria, nephrocalcinosis and kidney stones. Kidney and bone
  phenotypes do not always coexist, and heterozygous carriers frequently show an intermediate biochemical
  phenotype with isolated hypercalciuria. Oral phosphate monotherapy is standard care; active vitamin D
  analogues, the mainstay in FGF23-mediated disease, are avoided because they worsen hypercalciuria.
disease_term:
  preferred_term: Hereditary Hypophosphatemic Rickets with Hypercalciuria
  term:
    id: MONDO:0009431
    label: hereditary hypophosphatemic rickets with hypercalciuria
synonyms:
- HHRH
- SLC34A3-related hypophosphatemic rickets
- NPT2c-related hypophosphatemic rickets
parents:
- Hereditary Hypophosphatemic Rickets
- Metabolic Bone Disorders
notes: >-
  This entry covers biallelic SLC34A3-related HHRH (MONDO:0009431; OMIM 241530). It is the FGF23-independent
  member of the hereditary hypophosphatemic rickets, distinguished from X-linked hypophosphatemia, ARHR1
  and autosomal dominant hypophosphatemic rickets by normal or low FGF23 and elevated calcitriol. Heterozygous
  SLC34A3 carriers with isolated hypercalciuria are described in the genetic notes and are not a subtype of
  this disease. No GeneReviews chapter exists for HHRH (cache/bookshelf/genereviews.csv lists chapters for
  X-Linked Hypophosphatemia and Hypophosphatasia only), so the 2019 review and the 2024 pooled analysis are
  the phenotype baseline.
references:
- reference: PMID:2983203
  title: Hereditary hypophosphatemic rickets with hypercalciuria.
- reference: PMID:16358214
  title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
- reference: PMID:16358215
  title: Hereditary hypophosphatemic rickets with hypercalciuria is caused by mutations in the sodium-phosphate cotransporter gene SLC34A3.
- reference: PMID:30109410
  title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
- reference: PMID:38364990
  title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
- reference: PMID:35689455
  title: Clinical Spectrum of Hereditary Hypophosphatemic Rickets With Hypercalciuria (HHRH).
- reference: PMID:37981601
  title: "Hereditary Hypophosphatemic Rickets with Hypercalciuria Presenting with Enthesopathy, Renal Cysts, and High Serum c-Terminal FGF23: Single-Center Experience and Systematic Review."
- reference: PMID:22159077
  title: Processing and stability of type IIc sodium-dependent phosphate cotransporter mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria.
- reference: PMID:16849419
  title: Intronic deletions in the SLC34A3 gene cause hereditary hypophosphatemic rickets with hypercalciuria.
- reference: PMID:19570882
  title: Npt2a and Npt2c in mice play distinct and synergistic roles in inorganic phosphate metabolism and skeletal development.
- reference: PMID:38642991
  title: "Hereditary hypophosphatemic rickets with hypercalciuria (HHRH), a complex disorder in need of precision medicine."
- reference: DOI:10.1210/clinem/dgaa217
  title: Digenic Heterozygous Mutations in SLC34A3 and SLC34A1 Cause Dominant Hypophosphatemic Rickets with Hypercalciuria
- reference: DOI:10.3389/fendo.2021.736240
  title: "Overlapping Phenotypes Associated With CYP24A1, SLC34A1, and SLC34A3 Mutations: A Cohort Study of Patients With Hypersensitivity to Vitamin D"
classifications:
  harrisons_chapter:
  - classification_value: ENDOCRINOLOGY_METABOLISM
    notes: >-
      A disorder of phosphate and calcium homeostasis managed by metabolic bone and endocrine services.
    evidence:
    - reference: PMID:30109410
      reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
      supports: SUPPORT
      evidence_source: OTHER
      snippet: "These mutations result in the development of urinary phosphate (Pi) wasting and hypophosphatemic rickets, bowing, and short stature, as well as appropriately elevated 1,25(OH)2D levels"
      explanation: Frames the disease as a disorder of phosphate and vitamin D metabolism.
      quote_role: REVIEW_SYNTHESIS
  - classification_value: GENETICS_ENVIRONMENT_DISEASE
    notes: >-
      Mendelian, autosomal recessive, caused by biallelic SLC34A3 loss of function.
    evidence:
    - reference: PMID:16358214
      reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "supports the conclusion that this disease is caused by SLC34A3 mutations affecting both alleles"
      explanation: Establishes the recessive monogenic cause.
      quote_role: PRIMARY_RESULT
  isds_skeletal_category:
  - classification_value: abnormal_mineralization
    notes: >-
      ISDS Nosology and Classification of Genetic Skeletal Disorders, 2023 revision (Unger et al.,
      PMID:36779427), group 27 "Disorders of bone mineralisation", which holds the hereditary
      hypophosphataemic rickets; HHRH is the SLC34A3-related member, alongside the PHEX-related form in
      `X-Linked_Hypophosphatemia` and the DMP1-related form in `Autosomal_Recessive_Hypophosphatemic_Rickets_1`.
inheritance:
- name: Autosomal recessive inheritance
  inheritance_term:
    preferred_term: Autosomal recessive inheritance
    term:
      id: HP:0000007
      label: Autosomal recessive inheritance
  description: >-
    Homozygous or compound heterozygous SLC34A3 variants cause HHRH. Heterozygous carriers frequently
    have an intermediate biochemical phenotype, most often isolated hypercalciuria.
  evidence:
  - reference: PMID:16358214
    reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Hereditary hypophosphatemic rickets with hypercalciuria (HHRH) is a rare disorder of autosomal recessive inheritance that was first described in a large consanguineous Bedouin kindred."
    explanation: States the recessive inheritance of HHRH.
    quote_role: BACKGROUND
- name: Digenic inheritance
  inheritance_term:
    preferred_term: Digenic inheritance
    term:
      id: HP:0010984
      label: Digenic inheritance
  description: >-
    One kindred shows apparently dominant transmission through heterozygous variants in SLC34A3 and
    SLC34A1 together; carriers of both were more severely affected than carriers of either alone.
  evidence:
  - reference: DOI:10.1210/clinem/dgaa217
    reference_title: Digenic Heterozygous Mutations in SLC34A3 and SLC34A1 Cause Dominant Hypophosphatemic Rickets with Hypercalciuria
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "The proband and her affected sister inherited both gene mutations from their mother, while their clinically less affected brother, father, and paternal grandmother carried only the SLC34A3 mutation."
    explanation: Joint transmission of the two heterozygous variants segregates with the more severe phenotype.
    quote_role: PRIMARY_RESULT
prevalence:
- population: Worldwide
  measure_type: POINT_PREVALENCE
  prevalence_class: BAND_1_9_PER_1000000
  rate_per_100000: 0.4
  notes: >-
    Estimated prevalence of 1 in 250,000, stated in a 2019 review without a cited population study; treat
    as an order-of-magnitude estimate.
  evidence:
  - reference: PMID:30109410
    reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
    supports: SUPPORT
    evidence_source: OTHER
    snippet: "is a rare autosomal recessive disorder with an estimated prevalence of 1:250,000"
    explanation: Source of the 1 in 250,000 estimate (0.4 per 100,000).
    quote_role: REVIEW_SYNTHESIS
pathophysiology:
- name: Biallelic SLC34A3 Loss of Function
  biological_scale: MOLECULAR
  role: trigger
  description: >-
    Homozygous or compound heterozygous SLC34A3 variants remove or reduce NaPi-IIc sodium-phosphate
    cotransport at the proximal-tubule brush border. Alleles include truncating frameshifts such as the
    founder c.228delC, splice-site and intronic deletions causing aberrant splicing, and missense variants.
    Missense alleles act by different routes: some are retained in the endoplasmic reticulum, while others
    reach the cell surface but are degraded faster or transport phosphate with reduced maximal velocity.
  molecular_functions:
  - preferred_term: NaPi-IIc sodium-phosphate cotransport
    term:
      id: GO:0005436
      label: sodium:phosphate symporter activity
    modifier: DECREASED
  genes:
  - preferred_term: SLC34A3
    term:
      id: hgnc:20305
      label: SLC34A3
  genetic_context:
    gene:
      preferred_term: SLC34A3
      term:
        id: hgnc:20305
        label: SLC34A3
    functional_impact_category: LOSS_OF_FUNCTION
    variant_origin: GERMLINE
    description: Biallelic germline loss of function; homozygous or compound heterozygous.
  cell_types:
  - preferred_term: epithelial cell of proximal tubule
    term:
      id: CL:0002306
      label: epithelial cell of proximal tubule
  evidence:
  - reference: PMID:16358214
    reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "This mutation is predicted to truncate the NaP(i)-IIc protein in the first membrane-spanning domain and thus likely results in a complete loss of function of this protein in individuals homozygous for c.228delC."
    explanation: The founder allele in the original kindred is a truncating loss-of-function variant.
    quote_role: PRIMARY_RESULT
  - reference: PMID:16358215
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria is caused by mutations in the sodium-phosphate cotransporter gene SLC34A3.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Sequencing of this gene revealed disease-associated mutations in five families, including two frameshift and one splice-site mutation."
    explanation: Independent simultaneous identification of SLC34A3 variants in HHRH families.
    quote_role: PRIMARY_RESULT
  - reference: PMID:22159077
    reference_title: Processing and stability of type IIc sodium-dependent phosphate cotransporter mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: IN_VITRO
    snippet: "Mutations S138F, G196R, R468W, R564C, and c.228delC in human NaPi-IIc significantly decreased the levels of NaPi cotransport activities in Xenopus oocytes."
    explanation: Direct functional demonstration that HHRH alleles reduce sodium-phosphate cotransport.
    quote_role: PRIMARY_RESULT
  - reference: PMID:22159077
    reference_title: Processing and stability of type IIc sodium-dependent phosphate cotransporter mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: IN_VITRO
    snippet: "Thus, G196R and R468W mutations cause ER retention, while S138F and R564C mutations stimulate degradation of human NaPi-IIc in renal epithelial cells."
    explanation: Distinguishes trafficking and stability mechanisms among missense alleles.
    quote_role: PRIMARY_RESULT
  - reference: PMID:16849419
    reference_title: Intronic deletions in the SLC34A3 gene cause hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "The intron 9 deletion (and likely the other two mutations) identified in this study causes aberrant RNA splicing."
    explanation: Intronic deletions are a further loss-of-function allele class.
    quote_role: PRIMARY_RESULT
  downstream:
  - target: Renal Phosphate Wasting
    description: Loss of NaPi-IIc reduces proximal-tubule phosphate reabsorption.
    evidence:
    - reference: PMID:16358215
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria is caused by mutations in the sodium-phosphate cotransporter gene SLC34A3.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "Loss of function of the SLC34A3 protein presumably results in a primary renal tubular defect and is compatible with the HHRH phenotype."
      explanation: Links SLC34A3 loss to the primary renal tubular phosphate defect.
      quote_role: PRIMARY_RESULT
- name: Renal Phosphate Wasting
  biological_scale: TISSUE
  description: >-
    Proximal-tubule phosphate reabsorption is reduced, so the ratio of maximal tubular phosphate reabsorption
    to glomerular filtration rate (TmP/GFR) falls. This primary renal leak persists under phosphate
    supplementation, which corrects the other abnormalities without restoring TmP/GFR.
  biological_processes:
  - preferred_term: renal phosphate reabsorption
    term:
      id: GO:0097291
      label: renal phosphate ion absorption
    modifier: DECREASED
  cell_types:
  - preferred_term: epithelial cell of proximal tubule
    term:
      id: CL:0002306
      label: epithelial cell of proximal tubule
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "The characteristic features are rickets, short stature, increased renal phosphate clearance"
    explanation: Increased renal phosphate clearance (TmP/GFR 2 to 4 SD below the age-related mean) in the original kindred.
    quote_role: PRIMARY_RESULT
  downstream:
  - target: Systemic Phosphate Depletion
    description: Urinary phosphate loss lowers serum phosphate.
    evidence:
    - reference: PMID:2983203
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "We propose that the pivotal defect in this syndrome is a renal phosphate leak resulting in hypophosphatemia"
      explanation: States the renal leak as the cause of hypophosphatemia.
      quote_role: PRIMARY_RESULT
  - target: Hyperphosphaturia
    description: The reabsorption defect appears as inappropriately high urinary phosphate excretion.
    evidence:
    - reference: PMID:30109410
      reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
      supports: SUPPORT
      evidence_source: OTHER
      snippet: "These mutations result in the development of urinary phosphate (Pi) wasting and hypophosphatemic rickets, bowing, and short stature"
      explanation: Urinary phosphate wasting is the direct consequence of the transporter defect.
      quote_role: REVIEW_SYNTHESIS
- name: Systemic Phosphate Depletion
  biological_scale: ORGANISM
  conforms_to: "defective_skeletal_mineralization#Phosphopenic Substrate Deficiency"
  description: >-
    Chronic hypophosphatemia limits phosphate supply for mineralization (the phosphopenic arm of the
    defective skeletal mineralization module) and, because FGF23 is not raised, acts as the stimulus for
    increased calcitriol production.
  biological_processes:
  - preferred_term: phosphate ion homeostasis
    term:
      id: GO:0055062
      label: phosphate ion homeostasis
    modifier: ABNORMAL
  chemical_entities:
  - preferred_term: serum phosphate
    term:
      id: CHEBI:26020
      label: phosphate
    modifier: DECREASED
  evidence:
  - reference: PMID:16358214
    reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "HHRH is characterized by the presence of hypophosphatemia secondary to renal phosphate wasting"
    explanation: Hypophosphatemia is secondary to the renal leak.
    quote_role: BACKGROUND
  downstream:
  - target: Hypophosphatemia
    description: Systemic phosphate depletion is measured as hypophosphatemia.
    evidence:
    - reference: PMID:16358214
      reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "HHRH is characterized by the presence of hypophosphatemia secondary to renal phosphate wasting"
      explanation: Hypophosphatemia is the defining biochemical readout of the depletion.
      quote_role: BACKGROUND
  - target: FGF23-Independent Calcitriol Elevation
    description: >-
      With FGF23 normal or low, hypophosphatemia raises 1,25-dihydroxyvitamin D appropriately.
    evidence:
    - reference: PMID:2983203
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "a renal phosphate leak resulting in hypophosphatemia with an appropriate elevation of 1,25-dihydroxyvitamin D levels"
      explanation: Places calcitriol elevation downstream of hypophosphatemia.
      quote_role: PRIMARY_RESULT
  - target: Impaired Skeletal Mineralization
    description: Low phosphate supply impairs hydroxyapatite deposition in growth plate and bone.
    evidence:
    - reference: PMID:19570882
      reference_title: Npt2a and Npt2c in mice play distinct and synergistic roles in inorganic phosphate metabolism and skeletal development.
      supports: SUPPORT
      evidence_source: MODEL_ORGANISM
      snippet: "A high-P(i) diet after weaning rescued plasma phosphate levels and the bone phenotype in DKO mice."
      explanation: >-
        Correcting phosphate rescues the bone phenotype in Npt2a/Npt2c double-knockout mice, placing the
        skeletal defect downstream of phosphate depletion.
      directness: INDIRECT
      quote_role: PRIMARY_RESULT
    - reference: PMID:2983203
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "Long-term phosphate supplementation as the sole therapy resulted in reversal of all clinical and biochemical abnormalities except the decreased TmP/GFR."
      explanation: Phosphate repletion alone reverses the rickets in patients.
      directness: INDIRECT
      quote_role: PRIMARY_RESULT
- name: FGF23-Independent Calcitriol Elevation
  biological_scale: ORGANISM
  description: >-
    FGF23 is normal or low-normal in HHRH, so it does not restrain the renal calcitriol response to
    hypophosphatemia. Serum 1,25-dihydroxyvitamin D is therefore raised, which distinguishes HHRH from
    FGF23-mediated hypophosphatemias where calcitriol is low or inappropriately normal.
  genes:
  - preferred_term: FGF23
    term:
      id: hgnc:3680
      label: FGF23
  chemical_entities:
  - preferred_term: 1,25-dihydroxyvitamin D
    term:
      id: CHEBI:17823
      label: calcitriol
    modifier: INCREASED
  evidence:
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Characteristically and appropriately suppressed fibroblast growth factor 23 (FGF23) causes elevated 1,25-dihydroxy vitamin D (1,25(OH)2D)"
    explanation: States the causal step from suppressed FGF23 to raised calcitriol.
    quote_role: BACKGROUND
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "FGF23 was significantly decreased in comp/hom and het as compared to wild type"
    explanation: Pooled measurement showing FGF23 is lower, not raised, in carriers.
    quote_role: PRIMARY_RESULT
  - reference: PMID:16358215
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria is caused by mutations in the sodium-phosphate cotransporter gene SLC34A3.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "is at normal or low-normal serum levels in the patients with HHRH, further supporting a primary renal defect"
    explanation: FGF23 is not elevated in HHRH.
    quote_role: PRIMARY_RESULT
  - reference: PMID:30109410
    reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
    supports: SUPPORT
    evidence_source: OTHER
    snippet: "appropriately elevated 1,25(OH)2D levels, which sets this fibroblast growth factor 23 (FGF23)-independent disorder apart from the more common X-linked hypophosphatemia"
    explanation: Contrasts the calcitriol response with X-linked hypophosphatemia.
    quote_role: REVIEW_SYNTHESIS
  downstream:
  - target: Elevated circulating calcitriol
    description: The response is measured as raised serum 1,25-dihydroxyvitamin D.
    evidence:
    - reference: PMID:2983203
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "an elevated serum concentration of 1,25-dihydroxyvitamin D (390 +/- 99 pg per milliliter vs. the upper normal value of 110)"
      explanation: Elevated calcitriol measured in the original kindred.
      quote_role: PRIMARY_RESULT
  - target: Calcitriol-Driven Calcium Hyperabsorption
    description: Raised calcitriol increases intestinal calcium absorption.
    evidence:
    - reference: PMID:16358214
      reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "affected individuals present with hypercalciuria due to increased serum 1,25-dihydroxyvitamin D levels and increased intestinal calcium absorption"
      explanation: Links calcitriol elevation to increased intestinal calcium absorption.
      quote_role: BACKGROUND
- name: Calcitriol-Driven Calcium Hyperabsorption
  biological_scale: ORGANISM
  description: >-
    Elevated calcitriol increases intestinal calcium absorption, raising the filtered calcium load. The
    calcium load also suppresses parathyroid hormone, which acts on the kidney in the next node. This is
    an absorptive hypercalciuria with normal serum calcium. GO has no calcium-specific child of
    intestinal absorption (GO:0050892), so the calcium specificity is carried in preferred_term.
  biological_processes:
  - preferred_term: intestinal calcium absorption
    term:
      id: GO:0050892
      label: intestinal absorption
    modifier: INCREASED
  cell_types:
  - preferred_term: enterocyte
    term:
      id: CL:0000584
      label: enterocyte
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "increased gastrointestinal absorption of calcium and phosphorus"
    explanation: Measured increase in intestinal calcium absorption.
    quote_role: PRIMARY_RESULT
  - reference: PMID:30109410
    reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
    supports: SUPPORT
    evidence_source: OTHER
    snippet: "The elevated 1,25(OH)2D levels in turn result in hypercalciuria due to enhanced intestinal calcium absorption and reduced parathyroid hormone (PTH)-dependent calcium-reabsorption in the distal renal tubules"
    explanation: States both arms of the hypercalciuria mechanism.
    quote_role: REVIEW_SYNTHESIS
  downstream:
  - target: Hypercalciuria
    description: Increased absorbed calcium raises the filtered load and urinary calcium excretion.
    evidence:
    - reference: PMID:2983203
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "which causes increased calcium absorption, parathyroid suppression, and hypercalciuria"
      explanation: States the causal chain from calcium absorption to hypercalciuria.
      quote_role: PRIMARY_RESULT
  - target: Nephrocalcinosis
    description: >-
      Chronic hypercalciuria from calcitriol-driven calcium hyperabsorption deposits calcium in the renal
      parenchyma.
    evidence:
    - reference: PMID:30109410
      reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
      supports: SUPPORT
      evidence_source: OTHER
      snippet: "The elevated 1,25(OH)2D levels in turn result in hypercalciuria due to enhanced intestinal calcium absorption and reduced parathyroid hormone (PTH)-dependent calcium-reabsorption in the distal renal tubules, leading to the development of kidney stones and/or nephrocalcinosis in approximately half of the individuals with HHRH."
      explanation: States the chain from calcitriol-driven hypercalciuria to nephrocalcinosis.
      quote_role: REVIEW_SYNTHESIS
    - reference: PMID:35689455
      reference_title: Clinical Spectrum of Hereditary Hypophosphatemic Rickets With Hypercalciuria (HHRH).
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "Calcium excretion and 1,25-OH2 -D3 levels, but not TRP, were associated with nephrocalcinosis."
      explanation: Nephrocalcinosis tracks the calcitriol-calcium arm rather than phosphate reabsorption.
      quote_role: PRIMARY_RESULT
  - target: Nephrolithiasis
    description: The same hypercalciuria predisposes to calcium kidney stones.
    evidence:
    - reference: PMID:30109410
      reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
      supports: SUPPORT
      evidence_source: OTHER
      snippet: "The elevated 1,25(OH)2D levels in turn result in hypercalciuria due to enhanced intestinal calcium absorption and reduced parathyroid hormone (PTH)-dependent calcium-reabsorption in the distal renal tubules, leading to the development of kidney stones and/or nephrocalcinosis in approximately half of the individuals with HHRH."
      explanation: States the chain from calcitriol-driven hypercalciuria to kidney stones.
      quote_role: REVIEW_SYNTHESIS
  - target: Decreased circulating parathyroid hormone
    description: The calcium load suppresses parathyroid hormone secretion.
    evidence:
    - reference: PMID:2983203
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "which causes increased calcium absorption, parathyroid suppression, and hypercalciuria"
      explanation: Places parathyroid suppression downstream of increased calcium absorption.
      quote_role: PRIMARY_RESULT
  - target: Reduced PTH-Dependent Distal Tubular Calcium Reabsorption
    description: Suppressed PTH removes its stimulus to distal-tubule calcium reabsorption.
    evidence:
    - reference: PMID:2983203
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "which causes increased calcium absorption, parathyroid suppression, and hypercalciuria"
      explanation: Places parathyroid suppression between increased calcium absorption and hypercalciuria.
      quote_role: PRIMARY_RESULT
- name: Reduced PTH-Dependent Distal Tubular Calcium Reabsorption
  biological_scale: TISSUE
  description: >-
    With parathyroid hormone suppressed, distal-tubule calcium reabsorption falls, so more of the filtered
    calcium is excreted. This is the renal arm of the hypercalciuria, alongside the intestinal arm. GO has
    no renal calcium-ion absorption term (the children of renal absorption, GO:0070293, cover glucose,
    sodium, water, protein, phosphate and amino acids), so no process is bound here.
  cell_types:
  - preferred_term: distal convoluted tubule epithelial cell
    term:
      id: CL:1000849
      label: kidney distal convoluted tubule epithelial cell
  evidence:
  - reference: PMID:30109410
    reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
    supports: SUPPORT
    evidence_source: OTHER
    snippet: "reduced parathyroid hormone (PTH)-dependent calcium-reabsorption in the distal renal tubules"
    explanation: Names the renal arm of the hypercalciuria.
    quote_role: REVIEW_SYNTHESIS
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "which results in hypercalciuria because of enhanced intestinal calcium absorption and reduced parathyroid hormone (PTH) - dependent calcium reabsorption in the distal renal tubules"
    explanation: Independent statement of the same two-arm mechanism.
    quote_role: BACKGROUND
  downstream:
  - target: Hypercalciuria
    description: Less distal reabsorption adds to urinary calcium excretion.
    evidence:
    - reference: PMID:30109410
      reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
      supports: SUPPORT
      evidence_source: OTHER
      snippet: "The elevated 1,25(OH)2D levels in turn result in hypercalciuria due to enhanced intestinal calcium absorption and reduced parathyroid hormone (PTH)-dependent calcium-reabsorption in the distal renal tubules"
      explanation: Reduced distal reabsorption is one of the two causes of the hypercalciuria.
      quote_role: REVIEW_SYNTHESIS
- name: Impaired Skeletal Mineralization
  biological_scale: TISSUE
  conforms_to: "defective_skeletal_mineralization#Impaired Hydroxyapatite Deposition at the Mineralization Front"
  description: >-
    Phosphate deficiency impairs mineralization of growth-plate cartilage and bone matrix, producing rickets
    in children and osteomalacia in adults. Bone involvement is not universal: some biallelic probands,
    particularly those carrying c.575C>T p.(Ser192Leu), present with kidney findings only.
  biological_processes:
  - preferred_term: bone mineralization
    term:
      id: GO:0030282
      label: bone mineralization
    modifier: DECREASED
  cell_types:
  - preferred_term: osteoblast
    term:
      id: CL:0000062
      label: osteoblast
  evidence:
  - reference: PMID:16358214
    reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "radiographic and/or histological evidence of rickets, limb deformities, muscle weakness, and bone pain"
    explanation: Documents the skeletal mineralization defect.
    quote_role: BACKGROUND
  - reference: PMID:37981601
    reference_title: "Hereditary Hypophosphatemic Rickets with Hypercalciuria Presenting with Enthesopathy, Renal Cysts, and High Serum c-Terminal FGF23: Single-Center Experience and Systematic Review."
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "c.575C > T p.(Ser192Leu) variant occurred in 53% of probands without skeletal involvement."
    explanation: Bone involvement is variable and partly allele-dependent.
    quote_role: PRIMARY_RESULT
  - reference: PMID:38642991
    reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria (HHRH), a complex disorder in need of precision medicine."
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "kidney and bone phenotypes generally do not coexist"
    explanation: Commentary on the 304-person pooled analysis, supporting that bone involvement is not universal.
    quote_role: REVIEW_SYNTHESIS
  downstream:
  - target: Reduced bone mineral density
    description: Undermineralized bone reads as low areal BMD; phosphate repletion can improve it.
    evidence:
    - reference: PMID:38364990
      reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "Low BMD can improve with phosphate supplementation."
      explanation: >-
        Improvement with phosphate places low BMD downstream of the phosphate-limited mineralization defect;
        the inference runs through the treatment response.
      directness: INDIRECT
      quote_role: PRIMARY_RESULT
  - target: Rickets
    description: Defective growth-plate mineralization in children.
    evidence:
    - reference: PMID:2983203
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "The characteristic features are rickets, short stature, increased renal phosphate clearance"
      explanation: Rickets is a defining feature.
      quote_role: PRIMARY_RESULT
  - target: Osteomalacia
    description: Defective bone-matrix mineralization after growth-plate closure.
    evidence:
    - reference: PMID:16849419
      reference_title: Intronic deletions in the SLC34A3 gene cause hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "is a rare metabolic disorder, characterized by hypophosphatemia and rickets/osteomalacia with increased serum 1,25-dihydroxyvitamin D"
      explanation: Osteomalacia is part of the bone phenotype.
      quote_role: BACKGROUND
  - target: Bowing of the legs
    description: Soft, undermineralized long bones deform under load.
    evidence:
    - reference: PMID:30109410
      reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
      supports: SUPPORT
      evidence_source: OTHER
      snippet: "These mutations result in the development of urinary phosphate (Pi) wasting and hypophosphatemic rickets, bowing, and short stature"
      explanation: Bowing is a consequence of the rickets.
      quote_role: REVIEW_SYNTHESIS
  - target: Short stature
    description: Rickets impairs longitudinal growth.
    evidence:
    - reference: PMID:30109410
      reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
      supports: SUPPORT
      evidence_source: OTHER
      snippet: "These mutations result in the development of urinary phosphate (Pi) wasting and hypophosphatemic rickets, bowing, and short stature"
      explanation: Short stature follows from the rickets.
      quote_role: REVIEW_SYNTHESIS
  - target: Bone pain
    description: Undermineralized bone is painful.
    evidence:
    - reference: PMID:16358214
      reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "radiographic and/or histological evidence of rickets, limb deformities, muscle weakness, and bone pain"
      explanation: Bone pain accompanies the mineralization defect.
      quote_role: BACKGROUND
phenotypes:
- name: Hypophosphatemia
  category: Metabolic
  frequency: VERY_FREQUENT
  description: Low serum phosphate, the defining biochemical finding; usually corrected by oral phosphate.
  phenotype_term:
    preferred_term: Hypophosphatemia
    term:
      id: HP:0002148
      label: Hypophosphatemia
  evidence:
  - reference: PMID:16358214
    reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "HHRH is characterized by the presence of hypophosphatemia secondary to renal phosphate wasting"
    explanation: Hypophosphatemia is a cardinal feature.
    quote_role: BACKGROUND
  - reference: PMID:37981601
    reference_title: "Hereditary Hypophosphatemic Rickets with Hypercalciuria Presenting with Enthesopathy, Renal Cysts, and High Serum c-Terminal FGF23: Single-Center Experience and Systematic Review."
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "had a spectrum from rickets/osteomalacia to normal BMD, with hypophosphatemia and hypercalciuria in all"
    explanation: Hypophosphatemia in all nine biallelic subjects, supporting the very frequent qualifier.
    quote_role: PRIMARY_RESULT
- name: Hyperphosphaturia
  category: Renal
  description: Reduced tubular phosphate reabsorption (low TRP and TmP/GFR).
  phenotype_term:
    preferred_term: Renal phosphate wasting
    term:
      id: HP:0003109
      label: Hyperphosphaturia
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "The characteristic features are rickets, short stature, increased renal phosphate clearance"
    explanation: Increased renal phosphate clearance is a characteristic feature.
    quote_role: PRIMARY_RESULT
- name: Elevated circulating calcitriol
  category: Metabolic
  description: Raised serum 1,25-dihydroxyvitamin D, the feature that separates HHRH from FGF23-mediated forms.
  phenotype_term:
    preferred_term: Elevated serum 1,25-dihydroxyvitamin D
    term:
      id: HP:0031415
      label: Elevated circulating calcitriol concentration
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "an elevated serum concentration of 1,25-dihydroxyvitamin D (390 +/- 99 pg per milliliter vs. the upper normal value of 110)"
    explanation: Measured calcitriol elevation.
    quote_role: PRIMARY_RESULT
- name: Hypercalciuria
  category: Renal
  frequency: VERY_FREQUENT
  description: Absorptive hypercalciuria with normal serum calcium.
  phenotype_term:
    preferred_term: Hypercalciuria
    term:
      id: HP:0002150
      label: Hypercalciuria
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "hypercalciuria (8.6 mg of urinary calcium per kilogram of body weight per 24 hours vs. the upper normal value of 4.0), normal serum calcium levels"
    explanation: Quantified hypercalciuria with normal serum calcium.
    quote_role: PRIMARY_RESULT
  - reference: PMID:37981601
    reference_title: "Hereditary Hypophosphatemic Rickets with Hypercalciuria Presenting with Enthesopathy, Renal Cysts, and High Serum c-Terminal FGF23: Single-Center Experience and Systematic Review."
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "had a spectrum from rickets/osteomalacia to normal BMD, with hypophosphatemia and hypercalciuria in all"
    explanation: Hypercalciuria present in all nine biallelic subjects of a single-center series.
    quote_role: PRIMARY_RESULT
- name: Decreased circulating parathyroid hormone
  category: Endocrine
  description: Parathyroid function is suppressed by the increased calcium absorption.
  phenotype_term:
    preferred_term: Suppressed parathyroid hormone
    term:
      id: HP:0031817
      label: Decreased circulating parathyroid hormone level
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "suppressed parathyroid function (an immunoreactive parathyroid hormone level of 0.33 +/- 0.1 ng per milliliter"
    explanation: Measured parathyroid suppression.
    quote_role: PRIMARY_RESULT
- name: Nephrocalcinosis
  category: Renal
  frequency: FREQUENT
  description: >-
    Renal calcification (nephrocalcinosis or stones) occurs in about half to 70% of biallelic individuals
    and in about 30% of heterozygous relatives. In one series it tracked calcium excretion and calcitriol
    rather than tubular phosphate reabsorption.
  phenotype_term:
    preferred_term: Nephrocalcinosis
    term:
      id: HP:0000121
      label: Nephrocalcinosis
  evidence:
  - reference: PMID:30109410
    reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
    supports: SUPPORT
    evidence_source: OTHER
    snippet: "leading to the development of kidney stones and/or nephrocalcinosis in approximately half of the individuals with HHRH"
    explanation: Frequency of renal calcification in HHRH.
    quote_role: REVIEW_SYNTHESIS
  - reference: PMID:37981601
    reference_title: "Hereditary Hypophosphatemic Rickets with Hypercalciuria Presenting with Enthesopathy, Renal Cysts, and High Serum c-Terminal FGF23: Single-Center Experience and Systematic Review."
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "early-onset HHRH and renal calcification were present in ~ 70% and late-onset HHRH in 10%"
    explanation: Systematic review of 58 biallelic probands.
    quote_role: PRIMARY_RESULT
  - reference: PMID:35689455
    reference_title: Clinical Spectrum of Hereditary Hypophosphatemic Rickets With Hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Calcium excretion and 1,25-OH2 -D3 levels, but not TRP, were associated with nephrocalcinosis."
    explanation: Ties nephrocalcinosis to the calcitriol-hypercalciuria arm.
    quote_role: PRIMARY_RESULT
  - reference: PMID:37981601
    reference_title: "Hereditary Hypophosphatemic Rickets with Hypercalciuria Presenting with Enthesopathy, Renal Cysts, and High Serum c-Terminal FGF23: Single-Center Experience and Systematic Review."
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "renal calcification, hypophosphatemia, high 1,25(OH)2D, and hypercalciuria were observed in ~30%, 22.3%, 40%, and 38.8%, respectively"
    explanation: Renal calcification in about 30% of 110 relatives with monoallelic variants.
    quote_role: PRIMARY_RESULT
- name: Nephrolithiasis
  category: Renal
  description: Kidney stones from chronic hypercalciuria.
  phenotype_term:
    preferred_term: Nephrolithiasis
    term:
      id: HP:0000787
      label: Nephrolithiasis
  evidence:
  - reference: PMID:30109410
    reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
    supports: SUPPORT
    evidence_source: OTHER
    snippet: "leading to the development of kidney stones and/or nephrocalcinosis in approximately half of the individuals with HHRH"
    explanation: Kidney stones are a recognized renal complication.
    quote_role: REVIEW_SYNTHESIS
- name: Rickets
  category: Skeletal
  description: Childhood rickets; absent in a subset of biallelic probands.
  phenotype_term:
    preferred_term: Rickets
    term:
      id: HP:0002748
      label: Rickets
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "The characteristic features are rickets, short stature, increased renal phosphate clearance"
    explanation: Rickets in the original kindred.
    quote_role: PRIMARY_RESULT
- name: Osteomalacia
  category: Skeletal
  description: Adult undermineralized bone.
  phenotype_term:
    preferred_term: Osteomalacia
    term:
      id: HP:0002749
      label: Osteomalacia
  evidence:
  - reference: PMID:16849419
    reference_title: Intronic deletions in the SLC34A3 gene cause hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "is a rare metabolic disorder, characterized by hypophosphatemia and rickets/osteomalacia with increased serum 1,25-dihydroxyvitamin D"
    explanation: Osteomalacia is part of the bone phenotype.
    quote_role: BACKGROUND
- name: Bowing of the legs
  category: Skeletal
  phenotype_term:
    preferred_term: Bowing of the legs
    term:
      id: HP:0002979
      label: Bowing of the legs
  evidence:
  - reference: PMID:30109410
    reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
    supports: SUPPORT
    evidence_source: OTHER
    snippet: "These mutations result in the development of urinary phosphate (Pi) wasting and hypophosphatemic rickets, bowing, and short stature"
    explanation: Bowing is a recognized skeletal feature.
    quote_role: REVIEW_SYNTHESIS
- name: Short stature
  category: Growth
  phenotype_term:
    preferred_term: Short stature
    term:
      id: HP:0004322
      label: Short stature
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "The characteristic features are rickets, short stature, increased renal phosphate clearance"
    explanation: Short stature in the original kindred.
    quote_role: PRIMARY_RESULT
- name: Bone pain
  category: Skeletal
  phenotype_term:
    preferred_term: Bone pain
    term:
      id: HP:0002653
      label: Bone pain
  evidence:
  - reference: PMID:16358214
    reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "radiographic and/or histological evidence of rickets, limb deformities, muscle weakness, and bone pain"
    explanation: Bone pain is a characteristic feature.
    quote_role: BACKGROUND
- name: Renal cyst
  category: Renal
  frequency: OCCASIONAL
  description: >-
    Renal cysts are reported in about 10% of biallelic and 1-2% of heterozygous carriers. No cited source
    gives a mechanism, so the phenotype is not wired to a pathophysiology node.
  phenotype_term:
    preferred_term: Renal cyst
    term:
      id: HP:0000107
      label: Renal cyst
  evidence:
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "11% among those 79 comp/hom individuals and 2% out of those 89 het individuals"
    explanation: Pooled frequency of renal cysts among carriers with renal imaging.
    quote_role: PRIMARY_RESULT
- name: Fractures
  category: Skeletal
  frequency: OCCASIONAL
  description: >-
    Fractures, including stress fractures, are reported in about 10% of biallelic and 7% of heterozygous
    carriers in the pooled analysis.
  phenotype_term:
    preferred_term: Increased susceptibility to fractures
    term:
      id: HP:0002659
      label: Increased susceptibility to fractures
  evidence:
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "monoallelic SLC34A3 pathogenic variants should be considered in the differential diagnosis of patients with (stress) fractures and low bone density"
    explanation: Fractures are part of the carrier bone phenotype the authors flag for diagnosis.
    quote_role: PRIMARY_RESULT
- name: Muscle weakness
  category: Neuromuscular
  description: >-
    Muscle weakness is a characteristic feature; its mechanism (hypophosphatemic myopathy versus
    osteomalacic bone disease) is not resolved in the sources cited here.
  phenotype_term:
    preferred_term: Muscle weakness
    term:
      id: HP:0001324
      label: Muscle weakness
  evidence:
  - reference: PMID:16358214
    reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "radiographic and/or histological evidence of rickets, limb deformities, muscle weakness, and bone pain"
    explanation: Muscle weakness is a characteristic feature.
    quote_role: BACKGROUND
- name: Reduced bone mineral density
  category: Skeletal
  description: >-
    Low areal BMD is reported in biallelic patients and in about half of tested heterozygous carriers.
  phenotype_term:
    preferred_term: Reduced bone mineral density
    term:
      id: HP:0004349
      label: Reduced bone mineral density
  evidence:
  - reference: PMID:35689455
    reference_title: Clinical Spectrum of Hereditary Hypophosphatemic Rickets With Hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "aBMD Z-score <-2.0 was revealed in 4 of 8 heterozygous carriers"
    explanation: Low BMD extends to heterozygous carriers.
    quote_role: PRIMARY_RESULT
diagnosis:
- name: Clinical and Biochemical Evaluation for FGF23-Independent Phosphate Wasting
  diagnosis_term:
    preferred_term: Clinical Evaluation
    term:
      id: NCIT:C124351
      label: Clinical Evaluation
  description: >-
    Evaluate rickets, osteomalacia, low bone density, fractures, nephrocalcinosis or kidney stones with
    fasting serum phosphate, calcium, alkaline phosphatase, intact PTH, 25-hydroxyvitamin D,
    1,25-dihydroxyvitamin D and FGF23, paired fasting spot urine for TRP and TmP/GFR (Walton-Bijvoet
    nomogram), and urinary calcium/creatinine ratio. The HHRH pattern is low phosphate and TmP/GFR with
    normal or low FGF23, high-normal or raised calcitriol, low PTH, hypercalciuria and normal serum
    calcium. This separates it from FGF23-mediated hypophosphatemias (X-linked, ADHR, ARHR, tumor-induced
    osteomalacia), where calcitriol is low or inappropriately normal and calciuria is not raised.
    Incidentally detected nephrocalcinosis should prompt assessment of renal phosphate handling once
    primary hyperparathyroidism is excluded. C-terminal FGF23 can be raised by unrelated causes such as
    iron deficiency, which has led to misdiagnosis as tumor-induced osteomalacia. The high-calcitriol,
    low-PTH, hypercalciuric pattern overlaps with CYP24A1- and SLC34A1-related infantile hypercalcemia,
    so patients investigated for vitamin D hypersensitivity should also have SLC34A3 analysed.
  results: >-
    Hypophosphatemia with reduced TmP/GFR, non-elevated FGF23, raised calcitriol and hypercalciuria
    suggests HHRH or the heterozygous SLC34A3 trait; molecular testing confirms it.
  evidence:
  - reference: PMID:35689455
    reference_title: Clinical Spectrum of Hereditary Hypophosphatemic Rickets With Hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Reduced to low-normal phosphate levels, decreased tubular reabsorption of phosphate (TRP), and high-normal to elevated values of 1,25-OH2 -D3 accompanied by normal cFGF23 levels were revealed independently of mutational status."
    explanation: The biochemical profile that identifies SLC34A3-related phosphate wasting.
    quote_role: PRIMARY_RESULT
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Urine phosphate excretion (TmP/GFR or TRP (%)) and urinary calcium/creatinine ratio (U-Ca/Crea) were determined in fasting spot urines."
    explanation: The urine measurements used to establish renal phosphate wasting and hypercalciuria.
    quote_role: PRIMARY_RESULT
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "its incidental detection should prompt an evaluation of renal phosphate handling once more common causes such as primary hyperparathyroidism are excluded"
    explanation: Nephrocalcinosis as an entry point to the diagnostic work-up.
    quote_role: PRIMARY_RESULT
  - reference: PMID:37981601
    reference_title: "Hereditary Hypophosphatemic Rickets with Hypercalciuria Presenting with Enthesopathy, Renal Cysts, and High Serum c-Terminal FGF23: Single-Center Experience and Systematic Review."
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Elevated FGF23 in another patient with hypophosphatemia, iron deficiency anemia, and noncirrhotic periportal fibrosis led to initial misdiagnosis as tumoral osteomalacia."
    explanation: A raised FGF23 does not exclude HHRH when another cause is present.
    quote_role: PRIMARY_RESULT
  - reference: DOI:10.3389/fendo.2021.736240
    reference_title: "Overlapping Phenotypes Associated With CYP24A1, SLC34A1, and SLC34A3 Mutations: A Cohort Study of Patients With Hypersensitivity to Vitamin D"
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "patients with medical history suggestive of CYP24A1 mutation should benefit from SLC34A1 and SLC34A3 analysis"
    explanation: Overlapping vitamin D hypersensitivity phenotypes put SLC34A3 in the differential of CYP24A1 disease.
    quote_role: PRIMARY_RESULT
- name: SLC34A3 Molecular Genetic Testing
  diagnosis_term:
    preferred_term: Genetic Testing
    term:
      id: NCIT:C15709
      label: Genetic Testing
  description: >-
    Sequence SLC34A3 within a hereditary hypophosphatemia panel or exome, which also covers PHEX, FGF23,
    DMP1, ENPP1 and the other phosphate-transporter genes. Intronic deletions causing aberrant splicing
    are a known allele class and need methods that detect them. Monoallelic pathogenic variants are
    clinically relevant (isolated hypercalciuria, renal calcification and low bone density) and should
    be considered in patients with fractures or low bone density.
  results: >-
    Homozygous or compound heterozygous pathogenic SLC34A3 variants confirm HHRH; a single pathogenic
    variant indicates the heterozygous trait.
  evidence:
  - reference: PMID:35689455
    reference_title: Clinical Spectrum of Hereditary Hypophosphatemic Rickets With Hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "In 8 index patients and 5 family members, genetic analysis was performed using a custom gene panel."
    explanation: Panel-based genetic testing in a clinical series.
    quote_role: PRIMARY_RESULT
  - reference: PMID:16849419
    reference_title: Intronic deletions in the SLC34A3 gene cause hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "The intron 9 deletion (and likely the other two mutations) identified in this study causes aberrant RNA splicing."
    explanation: Intronic alleles must be covered by the testing method.
    quote_role: PRIMARY_RESULT
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "monoallelic SLC34A3 pathogenic variants should be considered in the differential diagnosis of patients with (stress) fractures and low bone density"
    explanation: Supports testing in patients presenting with fractures or low bone density.
    quote_role: PRIMARY_RESULT
- name: Renal Imaging for Nephrocalcinosis and Stones
  diagnosis_term:
    preferred_term: renal ultrasonography
    term:
      id: NCIT:C159885
      label: Renal Ultrasound
  description: >-
    Renal ultrasound (or abdominal CT) identifies nephrocalcinosis, kidney stones and renal cysts, which
    are frequent in biallelic and heterozygous carriers and increase with age.
  evidence:
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Renal ultrasound or abdominal CT was used to determine renal phenotype including nephrocalcinosis, renal stones and/or renal cysts."
    explanation: The imaging used to establish the renal phenotype.
    quote_role: PRIMARY_RESULT
biochemical:
- name: Serum Phosphate
  presence: Decreased or low-normal
  context: >-
    Fasting, against age-specific reference intervals; usually corrected by oral phosphate. A normal
    value does not exclude biallelic SLC34A3 disease.
  evidence:
  - reference: DOI:10.3389/fendo.2021.736240
    reference_title: "Overlapping Phenotypes Associated With CYP24A1, SLC34A1, and SLC34A3 Mutations: A Cohort Study of Patients With Hypersensitivity to Vitamin D"
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "a normal phosphatemia was reported in 2 patients with biallelic mutations in SLC34A3"
    explanation: Biallelic carriers ascertained through a vitamin D hypersensitivity work-up can be normophosphatemic.
    quote_role: PRIMARY_RESULT
  - reference: PMID:37981601
    reference_title: "Hereditary Hypophosphatemic Rickets with Hypercalciuria Presenting with Enthesopathy, Renal Cysts, and High Serum c-Terminal FGF23: Single-Center Experience and Systematic Review."
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "had a spectrum from rickets/osteomalacia to normal BMD, with hypophosphatemia and hypercalciuria in all"
    explanation: Hypophosphatemia in all biallelic subjects of the series.
    quote_role: PRIMARY_RESULT
- name: Tubular Phosphate Reabsorption (TRP and TmP/GFR)
  presence: Decreased
  context: >-
    Calculated from paired fasting serum and spot urine phosphate and creatinine; TmP/GFR from the
    Walton-Bijvoet nomogram. TmP/GFR stays low under phosphate therapy because the tubular defect persists.
  evidence:
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Pooled phenotypic analysis showed serum phosphate and TmP/GFR (Figure 2a-b) significantly decreased in het and comp/hom carriers of SLC34A3 pathogenic variants when compared to wild type"
    explanation: Reduced TmP/GFR in the pooled carrier cohort.
    quote_role: PRIMARY_RESULT
- name: FGF23
  presence: Normal, low-normal or decreased
  specificity: >-
    A non-elevated FGF23 during hypophosphatemia separates HHRH from FGF23-mediated hypophosphatemias.
    C-terminal assays detect fragments as well as intact hormone, and can be raised by unrelated
    conditions such as iron deficiency, so a high value does not exclude HHRH.
  evidence:
  - reference: PMID:16358215
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria is caused by mutations in the sodium-phosphate cotransporter gene SLC34A3.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "is at normal or low-normal serum levels in the patients with HHRH, further supporting a primary renal defect"
    explanation: FGF23 is not raised in HHRH.
    quote_role: PRIMARY_RESULT
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "FGF23 was significantly decreased in comp/hom and het as compared to wild type"
    explanation: Pooled measurement showing reduced FGF23 in carriers.
    quote_role: PRIMARY_RESULT
- name: 1,25-Dihydroxyvitamin D
  presence: High-normal or elevated
  specificity: >-
    Raised calcitriol with hypophosphatemia is the discriminating finding against FGF23-mediated forms,
    in which calcitriol is low or inappropriately normal.
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "an elevated serum concentration of 1,25-dihydroxyvitamin D (390 +/- 99 pg per milliliter vs. the upper normal value of 110)"
    explanation: Elevated calcitriol in the original kindred.
    quote_role: PRIMARY_RESULT
- name: Urinary Calcium Excretion
  presence: Increased
  context: Fasting spot urinary calcium/creatinine ratio or 24-hour urinary calcium.
  evidence:
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "serum 1,25(OH)2D and urine calcium excretion (Figure 2d-e) were significantly increased in het and comp/hom carriers when compared to wild type"
    explanation: Raised urinary calcium excretion across carriers.
    quote_role: PRIMARY_RESULT
- name: Intact Parathyroid Hormone
  presence: Low or low-normal
  context: Monitor during phosphate supplementation, which can raise PTH.
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "suppressed parathyroid function (an immunoreactive parathyroid hormone level of 0.33 +/- 0.1 ng per milliliter"
    explanation: Suppressed PTH in the original kindred.
    quote_role: PRIMARY_RESULT
- name: Serum Calcium
  presence: Normal
  evidence:
  - reference: PMID:2983203
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "hypercalciuria (8.6 mg of urinary calcium per kilogram of body weight per 24 hours vs. the upper normal value of 4.0), normal serum calcium levels"
    explanation: Normal serum calcium despite hypercalciuria.
    quote_role: PRIMARY_RESULT
- name: Alkaline Phosphatase
  presence: Increased in biallelic carriers
  evidence:
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "iPTH was decreased and serum ALP was increased in comp/hom carriers compared to het carriers"
    explanation: Higher ALP and lower PTH in biallelic than heterozygous carriers.
    quote_role: PRIMARY_RESULT
genetic:
- name: Biallelic SLC34A3 Pathogenic Variants
  gene_term:
    preferred_term: SLC34A3
    term:
      id: hgnc:20305
      label: SLC34A3
  association: Causative
  relationship_type: CAUSATIVE
  variant_origin: GERMLINE
  inheritance:
  - name: Autosomal recessive inheritance
    inheritance_term:
      preferred_term: Autosomal recessive inheritance
      term:
        id: HP:0000007
        label: Autosomal recessive inheritance
    evidence:
    - reference: PMID:16358214
      reference_title: SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "supports the conclusion that this disease is caused by SLC34A3 mutations affecting both alleles"
      explanation: Biallelic variants cause the disease.
      quote_role: PRIMARY_RESULT
  notes: >-
    Heterozygous carriers frequently show an intermediate phenotype: in a pooled analysis of 304 individuals
    from 145 kindreds, heterozygotes had lower phosphate and TRP, higher calcitriol and idiopathic
    hypercalciuria in 38%, with bone phenotypes in 23%. Biallelic carriers showed more than 90% penetrance
    for kidney and bone phenotypes. Not recorded as a separate dominant disease here. No ClinGen
    gene-disease validity assertion for SLC34A3 is present in the committed ClinGen export.
  evidence:
  - reference: PMID:16358215
    reference_title: Hereditary hypophosphatemic rickets with hypercalciuria is caused by mutations in the sodium-phosphate cotransporter gene SLC34A3.
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Sequencing of this gene revealed disease-associated mutations in five families, including two frameshift and one splice-site mutation."
    explanation: Independent identification of SLC34A3 as the causal gene.
    quote_role: PRIMARY_RESULT
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Compound heterozygous/homozygous carriers show above 90% penetrance for kidney and bone phenotypes."
    explanation: Penetrance in biallelic carriers.
    quote_role: PRIMARY_RESULT
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "urine calcium excretion causing idiopathic hypercalciuria in 38%, with bone phenotypes still observed in 23% of patients"
    explanation: Intermediate phenotype in heterozygous carriers.
    quote_role: PRIMARY_RESULT
- name: SLC34A1 Heterozygous Variant in Digenic Inheritance
  gene_term:
    preferred_term: SLC34A1
    term:
      id: hgnc:11019
      label: SLC34A1
  association: Modifier
  relationship_type: MODIFIER
  variant_origin: GERMLINE
  notes: >-
    In one four-generation kindred with apparently dominant HHRH, the more severely affected members
    carried heterozygous variants in both SLC34A3 (c.1561dupC) and SLC34A1 (encoding NPT2A, p.R512H);
    relatives with the SLC34A3 variant alone were less affected. Single-family evidence, so SLC34A1 is
    recorded as a modifier of SLC34A3 disease, not as an independent cause of classic HHRH.
  evidence:
  - reference: DOI:10.1210/clinem/dgaa217
    reference_title: Digenic Heterozygous Mutations in SLC34A3 and SLC34A1 Cause Dominant Hypophosphatemic Rickets with Hypercalciuria
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "We describe a kindred with autosomal dominant hypophosphatemic rickets in which whole exome analysis identified digenic heterozygous mutations in SLC34A1 and SLC34A3."
    explanation: Digenic SLC34A1/SLC34A3 heterozygosity producing an HHRH-like phenotype.
    quote_role: PRIMARY_RESULT
  - reference: DOI:10.1210/clinem/dgaa217
    reference_title: Digenic Heterozygous Mutations in SLC34A3 and SLC34A1 Cause Dominant Hypophosphatemic Rickets with Hypercalciuria
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "Subjects with both mutations were more severely affected than subjects carrying only one mutation."
    explanation: Gene dosage effect of the second locus.
    quote_role: PRIMARY_RESULT
treatments:
- name: Oral Phosphate Monotherapy
  action_category: THERAPEUTIC
  therapeutic_modality: SMALL_MOLECULE
  description: >-
    Oral phosphate supplementation alone is standard care and typically normalizes serum phosphate. In the
    original kindred it reversed the clinical and biochemical abnormalities except the renal phosphate leak
    itself. In a pooled analysis it corrected hypophosphatemia in more than half of individuals but often
    did not resolve kidney or bone outcomes, and response depended on genotype and baseline TRP. Active
    vitamin D analogues are contraindicated, because calcitriol is already raised and they would worsen the
    hypercalciuria. Phosphate supplementation can raise PTH, and secondary hyperparathyroidism has
    developed on treatment, so PTH is monitored. Long-term data on preventing renal calcification are
    lacking.
  treatment_term:
    preferred_term: Pharmacotherapy
    term:
      id: NCIT:C15986
      label: Pharmacotherapy
    therapeutic_agent:
    - preferred_term: oral phosphate
      term:
        id: CHEBI:26020
        label: phosphate
  target_mechanisms:
  - target: Systemic Phosphate Depletion
    treatment_effect: RESTORES
    description: Replaces the phosphate lost in urine, restoring serum phosphate without correcting the tubular leak.
    evidence:
    - reference: PMID:2983203
      reference_title: Hereditary hypophosphatemic rickets with hypercalciuria.
      supports: SUPPORT
      evidence_source: HUMAN_CLINICAL
      snippet: "Long-term phosphate supplementation as the sole therapy resulted in reversal of all clinical and biochemical abnormalities except the decreased TmP/GFR."
      explanation: Phosphate repletion corrects the downstream abnormalities but not the renal defect.
      quote_role: PRIMARY_RESULT
  evidence:
  - reference: PMID:30109410
    reference_title: "Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy."
    supports: SUPPORT
    evidence_source: OTHER
    snippet: "Treatment of HHRH and IH consists of monotherapy with oral Pi supplements, while active vitamin D analogs are contraindicated, mainly because the endogenous 1,25(OH)2D levels are already elevated but also to prevent further worsening of the hypercalciuria."
    explanation: Standard of care and the contraindication to active vitamin D.
    quote_role: REVIEW_SYNTHESIS
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "However, although in more than half of individuals this therapy achieves correction of hypophosphatemia it fails to resolve the other outcomes."
    explanation: Limits of phosphate monotherapy in the pooled cohort.
    quote_role: PRIMARY_RESULT
  - reference: PMID:38364990
    reference_title: An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
    supports: SUPPORT
    evidence_source: HUMAN_CLINICAL
    snippet: "phosphate supplementation increases iPTH in 22 individuals, and frank secondary hyperparathyroidism developed in three comp/hom and one het individual"
    explanation: Basis for monitoring PTH during phosphate therapy.
    quote_role: PRIMARY_RESULT
animal_models:
- name: Npt2c-null mouse
  species: Mouse
  genotype: Slc34a3 (Npt2c) homozygous null
  publication: PMID:19570882
  genes:
  - preferred_term: Slc34a3
    term:
      id: hgnc:20305
      label: SLC34A3
  description: >-
    Mice lacking Npt2c alone do not waste phosphate on a normal-phosphate diet, unlike human HHRH.
  modeled_mechanisms:
  - target: Renal Phosphate Wasting
    relationship: FAILS_TO_RECAPITULATE
    fidelity: LOW
    model_scale: ORGANISM
    description: Single Npt2c knockout shows no renal phosphate wasting.
    limitations: >-
      In mice Npt2a carries most proximal-tubule phosphate reabsorption, so Npt2c loss alone is compensated;
      in humans NPT2c loss is sufficient to cause phosphate wasting. The species difference in transporter
      dependence limits the single knockout as an HHRH model.
    evidence:
    - reference: PMID:19570882
      reference_title: Npt2a and Npt2c in mice play distinct and synergistic roles in inorganic phosphate metabolism and skeletal development.
      supports: SUPPORT
      evidence_source: MODEL_ORGANISM
      snippet: "mice that are null for Npt2c (Npt2c(-/-)) show no evidence for renal phosphate wasting when maintained on a diet with a normal phosphate content"
      explanation: The negative result defining the mismatch.
      quote_role: PRIMARY_RESULT
- name: Npt2a/Npt2c double-knockout mouse
  species: Mouse
  genotype: Slc34a1 (Npt2a) and Slc34a3 (Npt2c) homozygous null
  publication: PMID:19570882
  genes:
  - preferred_term: Slc34a3
    term:
      id: hgnc:20305
      label: SLC34A3
  - preferred_term: Slc34a1
    term:
      id: hgnc:11019
      label: SLC34A1
  description: >-
    Combined loss of Npt2a and Npt2c reproduces severe hypophosphatemia, hypercalciuria and rickets, and a
    high-phosphate diet rescues phosphate and bone.
  modeled_mechanisms:
  - target: Impaired Skeletal Mineralization
    relationship: PARTIALLY_RECAPITULATES
    fidelity: MODERATE
    model_scale: ORGANISM
    description: Double knockout develops hypophosphatemic rickets rescued by dietary phosphate.
    limitations: >-
      Requires loss of a second transporter (Npt2a) that is intact in human HHRH, so the model reflects
      the combined deficit rather than the human single-gene lesion.
    evidence:
    - reference: PMID:19570882
      reference_title: Npt2a and Npt2c in mice play distinct and synergistic roles in inorganic phosphate metabolism and skeletal development.
      supports: SUPPORT
      evidence_source: MODEL_ORGANISM
      snippet: "DKO mice exhibited severe hypophosphatemia, hypercalciuria, and rickets."
      explanation: The double knockout reproduces the human triad.
      quote_role: PRIMARY_RESULT
📚

References & Deep Research

References

13
PMID:2983203
Hereditary hypophosphatemic rickets with hypercalciuria.
No top-level findings curated for this source.
PMID:16358214
SLC34A3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter NaPi-IIc in maintaining phosphate homeostasis.
No top-level findings curated for this source.
PMID:16358215
Hereditary hypophosphatemic rickets with hypercalciuria is caused by mutations in the sodium-phosphate cotransporter gene SLC34A3.
No top-level findings curated for this source.
PMID:30109410
Hereditary hypophosphatemic rickets with hypercalciuria: pathophysiology, clinical presentation, diagnosis and therapy.
No top-level findings curated for this source.
PMID:38364990
An update on clinical presentation and responses to therapy of patients with hereditary hypophosphatemic rickets with hypercalciuria (HHRH).
No top-level findings curated for this source.
PMID:35689455
Clinical Spectrum of Hereditary Hypophosphatemic Rickets With Hypercalciuria (HHRH).
No top-level findings curated for this source.
PMID:37981601
Hereditary Hypophosphatemic Rickets with Hypercalciuria Presenting with Enthesopathy, Renal Cysts, and High Serum c-Terminal FGF23: Single-Center Experience and Systematic Review.
No top-level findings curated for this source.
PMID:22159077
Processing and stability of type IIc sodium-dependent phosphate cotransporter mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria.
No top-level findings curated for this source.
PMID:16849419
Intronic deletions in the SLC34A3 gene cause hereditary hypophosphatemic rickets with hypercalciuria.
No top-level findings curated for this source.
PMID:19570882
Npt2a and Npt2c in mice play distinct and synergistic roles in inorganic phosphate metabolism and skeletal development.
No top-level findings curated for this source.
PMID:38642991
Hereditary hypophosphatemic rickets with hypercalciuria (HHRH), a complex disorder in need of precision medicine.
No top-level findings curated for this source.
DOI:10.1210/clinem/dgaa217
Digenic Heterozygous Mutations in SLC34A3 and SLC34A1 Cause Dominant Hypophosphatemic Rickets with Hypercalciuria
No top-level findings curated for this source.
DOI:10.3389/fendo.2021.736240
Overlapping Phenotypes Associated With CYP24A1, SLC34A1, and SLC34A3 Mutations: A Cohort Study of Patients With Hypersensitivity to Vitamin D
No top-level findings curated for this source.

Deep Research

1

Deep research results are used as seeds for research; they do not undergo the same validation as the main records and may contain errors. How we use deep research.

Evaluations and curation notes (1)

Review round 1: diagnosis, biochemistry, distal-tubule node, deep research · 2026-10-13T19:43:01Z · View source

Addressed the first review of PR #13888. - Ran a Falcon deep-research report (research/...-deep-research-falcon.md; 12/12 references resolved) and reconciled the entry against it. The preflight reported WARN only because FGF23 is mentioned as a biomarker and comparator, not as a second disease. - Added diagnosis (clinical/biochemical evaluation, SLC34A3 genetic testing, renal ultrasound) and biochemical sections (serum phosphate, TRP/TmP-GFR, FGF23, calcitriol, urinary calcium, PTH, serum calcium, ALP), quoted from PMID:38364990, PMID:35689455, PMID:37981601 and the Molin 2021 cohort. - Split the renal arm of the hypercalciuria into a new node, Reduced PTH-Dependent Distal Tubular Calcium Reabsorption. GO has no renal or intestinal calcium-absorption term, so neither node binds one. - Bound FGF23 and calcitriol on the calcitriol-elevation node; added renal cyst and fracture phenotypes, a low-BMD edge, frequency evidence for hypophosphatemia and heterozygote renal calcification, PTH monitoring on phosphate therapy, and a citation for PMID:38642991. - From the deep research: digenic SLC34A3/SLC34A1 inheritance (HP:0010984) with SLC34A1 as a modifier (Gordon 2020), and normophosphatemic biallelic carriers (Molin 2021). The growth hormone adjunct in one uncontrolled two-brother report was not added. - Enthesopathy was not added: HPO has no enthesopathy term, and it is a single case. Validation: just validate, validate-terms and count-verified-snippets (97/97) pass, as do the entity-ref, causal-target, duplicate-key, enum and block-scalar checks.

Falcon ▸
Disease Characteristics Research Template
Edison Scientific Literature 54 citations 2026-10-13T19:58:17.604492

Question: You are an expert researcher providing comprehensive, well-cited information.

Provide detailed information focusing on: 1. Key concepts and definitions with current understanding 2. Recent developments and latest research (prioritize 2023-2024 sources) 3. Current applications and real-world implementations 4. Expert opinions and analysis from authoritative sources 5. Relevant statistics and data from recent studies

Format as a comprehensive research report with proper citations. Include URLs and publication dates where available. Always prioritize recent, authoritative sources and provide specific citations for all major claims.

Disease Characteristics Research Template

Target Disease

  • Disease Name: Hereditary Hypophosphatemic Rickets with Hypercalciuria
  • MONDO ID: MONDO:0009431 (if available)
  • Category: Mendelian

Research Objectives

Please provide a comprehensive research report on Hereditary Hypophosphatemic Rickets with Hypercalciuria covering all of the disease characteristics listed below. This report will be used to populate a disease knowledge base entry. Be thorough and cite primary literature (PMID preferred) for all claims.

For each section, suggested databases/resources are listed. These are the first places you should search for information on each topic.

1. Disease Information

Search first: OMIM, Orphanet, ICD-10/ICD-11, MeSH, PubMed

  • What is the disease? Provide a concise overview.
  • What are the key identifiers? (OMIM, Orphanet, ICD-10/ICD-11, MeSH, Mondo)
  • What are the common synonyms and alternative names?
  • Is the information derived from individual patients (e.g., EHR) or aggregated disease-level resources?

2. Etiology

  • Disease Causal Factors: What are the primary causes? (genetic, environmental, infectious, mechanistic)
  • Risk Factors:

    Search first: PubMed, Cochrane Library, UpToDate, clinical guidelines, ClinVar, ClinGen, GWAS Catalog, PheGenI, CTD, CDC, WHO, epidemiological databases

  • Genetic risk factors (causal variants, susceptibility loci, modifier genes)
  • Environmental risk factors (toxins, lifestyle, occupational exposures, age, sex, family history)
  • Protective Factors:

    Search first: PubMed, Cochrane Library, clinical trial databases, GWAS Catalog, gnomAD, WHO, CDC, nutrition databases

  • Genetic protective factors (protective variants, modifier alleles)
  • Environmental protective factors (diet, lifestyle, exposures that reduce risk)
  • Gene-Environment Interactions: How do genetic and environmental factors interact to influence disease?

    Search first: CTD, PubMed, PheGenI, GxE databases

3. Phenotypes

Search first: HPO (Human Phenotype Ontology), OMIM, Orphanet, PubMed, clinicaltrials.gov, MedDRA, SNOMED CT, DECIPHER, LOINC

For each phenotype, provide: - Phenotype type: symptoms, clinical signs, physical manifestations, behavioral changes, or laboratory abnormalities

For symptoms/signs: HPO, OMIM, Orphanet, PubMed For behavioral changes: HPO, DSM, RDoC (Research Domain Criteria), PubMed For laboratory abnormalities: LOINC, SNOMED CT, LabTests Online, PubMed - Phenotype characteristics: Search first: OMIM, Orphanet, HPO, PubMed - Age of symptom onset (neonatal, childhood, adult-onset, late-onset) - Symptom severity (mild, moderate, severe, variable) - Symptom progression (stable, progressive, episodic, fluctuating) - Frequency among affected individuals (percentage or qualitative) - Quality of life impact: Effects on daily functioning and well-being (per-phenotype when possible) Search first: EQ-5D database, SF-36, WHO QOL databases, PubMed - Suggest HPO (Human Phenotype Ontology) terms for each phenotype

4. Genetic/Molecular Information

  • Causal Genes: Gene mutations or chromosomal abnormalities responsible for disease (gene symbols, OMIM IDs)

    Search first: OMIM, ClinVar, HGMD, Ensembl, NCBI Gene

  • Pathogenic Variants:
  • Affected genes (gene symbols, HGNC IDs) > Search first: OMIM, NCBI Gene, Ensembl, HGNC, UniProt, GeneCards
  • Variant classification (pathogenic, likely pathogenic, VUS per ACMG/AMP guidelines) > Search first: ClinVar, ClinGen, ACMG/AMP guidelines, VarSome
  • Variant type/class (missense, frameshift, nonsense, splice-site, structural)
  • Allele frequency in population databases > Search first: gnomAD, 1000 Genomes, ExAC, TOPMed, dbSNP
  • Somatic vs germline origin > Search first: COSMIC (somatic), ClinVar, ICGC, TCGA
  • Functional consequences (loss of function, gain of function, dominant negative)
  • Modifier Genes: Genes that modify disease severity or expression
  • Epigenetic Information: DNA methylation, histone modifications, chromatin changes affecting disease

    Search first: ENCODE, Roadmap Epigenomics, MethBase, DiseaseMeth

  • Chromosomal Abnormalities: Large-scale genetic changes (aneuploidy, translocations, inversions)

    Search first: DECIPHER, ClinVar, ECARUCA, UCSC Genome Browser

5. Environmental Information

  • Environmental Factors: Non-genetic contributing factors (toxins, radiation, pollution, occupational exposure)

    Search first: CTD (Comparative Toxicogenomics Database), TOXNET, PubMed, EPA databases

  • Lifestyle Factors: Behavioral factors (smoking, diet, exercise, alcohol consumption)

    Search first: CDC databases, WHO, PubMed, NHANES

  • Infectious Agents: If applicable, pathogens causing or triggering disease (bacteria, viruses, fungi, parasites)

    Search first: NCBI Taxonomy, ViPR, BV-BRC, MicrobeDB, GIDEON

6. Mechanism / Pathophysiology

Present this section as an ordered causal chain first, then the detail below. Open with a numbered sequence of mechanistic steps running from the initiating lesion (mutation, exposure, infection) to the clinical manifestation, one step per line, each naming what it causes next. State the causal verb explicitly ("leads to", "results in") and say where a step is inferred rather than demonstrated. Where the mechanism branches, show the branch. The categories below are a checklist of what to cover within those steps, not the organizing structure — a step may draw on several of them, and a category may contribute to several steps.

  • Molecular Pathways: Specific signaling cascades or biochemical pathways involved (Wnt, MAPK, mTOR, PI3K-AKT, etc.)

    Search first: KEGG, Reactome, WikiPathways, PathBank, BioCyc

  • Cellular Processes: Cell-level mechanisms (apoptosis, autophagy, cell cycle dysregulation, inflammation, etc.)

    Search first: Gene Ontology (GO), Reactome, KEGG, PubMed

  • Protein Dysfunction: How protein structure or function is altered (misfolding, aggregation, loss of function, gain of function)

    Search first: UniProt, PDB (Protein Data Bank), InterPro, Pfam, AlphaFold

  • Metabolic Changes: Alterations in metabolic processes (energy metabolism, lipid metabolism, amino acid metabolism)

    Search first: KEGG, BioCyc, HMDB (Human Metabolome Database), BRENDA

  • Immune System Involvement: Role of immune response (autoimmunity, immunodeficiency, chronic inflammation)

    Search first: ImmPort, Immunome Database, IEDB, Gene Ontology

  • Tissue Damage Mechanisms: How tissues/ are injured (oxidative stress, ischemia, fibrosis, necrosis)

    Search first: PubMed, Gene Ontology, Reactome

  • Biochemical Abnormalities: Specific molecular defects (enzyme deficiencies, receptor dysfunction, ion channel defects)

    Search first: BRENDA, UniProt, KEGG, OMIM, PubMed

  • Epigenetic Changes: DNA methylation, histone modifications affecting gene expression in disease

    Search first: ENCODE, Roadmap Epigenomics, MethBase, DiseaseMeth

  • Molecular Profiling (if available):
  • Transcriptomics/gene expression changes > Search first: GEO (Gene Expression Omnibus), ArrayExpress, GTEx, Human Cell Atlas, SRA
  • Proteomics findings > Search first: PRIDE, ProteomeXchange, Human Protein Atlas, STRING, BioGRID
  • Metabolomics signatures > Search first: MetaboLights, Metabolomics Workbench, HMDB, METLIN
  • Lipidomics alterations > Search first: LIPID MAPS, SwissLipids, LipidHome, Metabolomics Workbench
  • Genomic structural features > Search first: UCSC Genome Browser, Ensembl, NCBI, dbVar, DGV
  • Advanced Technologies (if applicable):
  • Single-cell analysis findings (cell-type specific mechanisms, cellular heterogeneity) > Search first: Human Cell Atlas, Single Cell Portal, GEO, CELLxGENE
  • Spatial transcriptomics findings > Search first: GEO, Spatial Research, Vizgen, 10x Genomics data
  • Multi-omics integration results > Search first: TCGA, ICGC, cBioPortal, LinkedOmics, PubMed
  • Functional genomics screens (CRISPR, RNAi) > Search first: DepMap, GenomeRNAi, PubMed, BioGRID ORCS

For each mechanism, describe: - The causal chain from initial trigger to clinical manifestation - Which mechanisms are upstream vs downstream - What cell types and biological processes are involved - Suggest GO terms for biological processes and CL terms for cell types

7. Anatomical Structures Affected

  • Organ Level:
  • Primary organs directly affected
  • Secondary organ involvement (complications, secondary effects)
  • Body systems involved (cardiovascular, nervous, digestive, respiratory, endocrine, etc.)

    Search first: Uberon, FMA (Foundational Model of Anatomy), OMIM, HPO, ICD-11, MeSH, SNOMED CT

  • Tissue and Cell Level:
  • Specific tissue types affected (epithelial, connective, muscle, nervous)
  • Specific cell populations targeted (with Cell Ontology terms)

    Search first: Uberon, Human Protein Atlas, Cell Ontology, Human Cell Atlas, CellMarker, PanglaoDB

  • Subcellular Level:
  • Cellular compartments involved (mitochondria, nucleus, ER, lysosomes) (with GO Cellular Component terms)

    Search first: Gene Ontology (Cellular Component), UniProt, Human Protein Atlas

  • Localization:
  • Specific anatomical sites (with UBERON terms) > Search first: FMA, Uberon, NeuroNames (for brain), SNOMED CT
  • Lateralization (unilateral, bilateral, asymmetric) > Search first: HPO, clinical literature, imaging databases

8. Temporal Development

  • Onset:
  • Typical age of onset (congenital, pediatric, adult, geriatric)
  • Onset pattern (acute, subacute, chronic, insidious)

    Search first: OMIM, Orphanet, HPO, PubMed

  • Progression:
  • Disease stages (early, intermediate, advanced, end-stage) > Search first: Cancer Staging Manual (AJCC), WHO classifications, PubMed
  • Progression rate (rapid, slow, variable)
  • Disease course pattern (episodic, relapsing-remitting, progressive, stable)
  • Disease duration (self-limited, chronic lifelong)

    Search first: Disease registries, longitudinal cohort databases, natural history studies, PubMed, Orphanet, OMIM

  • Patterns:
  • Remission patterns (spontaneous, treatment-induced) > Search first: Clinical trial databases, disease registries, PubMed
  • Critical periods (time windows of vulnerability or opportunity for intervention) > Search first: PubMed, developmental biology databases, clinical guidelines

9. Inheritance and Population

  • Epidemiology:
  • Prevalence (cases per 100,000 at given time)
  • Incidence (new cases per 100,000 per year)

    Search first: Orphanet, CDC, WHO, GBD (Global Burden of Disease), national registries, SEER, disease registries

  • For Genetic Etiology:
  • Inheritance pattern (AD, AR, X-linked, mitochondrial, multifactorial, polygenic) > Search first: OMIM, Orphanet, ClinVar, GTR (Genetic Testing Registry)
  • Penetrance (complete, incomplete, age-dependent) > Search first: ClinVar, OMIM, PubMed, ClinGen
  • Expressivity (variable, consistent) > Search first: OMIM, ClinVar, PubMed
  • Genetic anticipation (increasing severity in successive generations) > Search first: OMIM, PubMed (especially for repeat expansion disorders)
  • Germline mosaicism > Search first: ClinVar, OMIM, genetic counseling literature, PubMed
  • Founder effects (population-specific mutations) > Search first: gnomAD, population genetics databases, PubMed
  • Consanguinity role > Search first: OMIM, population studies, genetic counseling resources
  • Carrier frequency > Search first: gnomAD, carrier screening databases, GeneReviews, GTR
  • Population Demographics:
  • Affected populations (ethnic or demographic groups with higher prevalence) > Search first: gnomAD, 1000 Genomes, PAGE Study, PubMed, population registries
  • Geographic distribution (endemic areas, regional variation) > Search first: WHO, CDC, GBD, Orphanet, geographic epidemiology databases
  • Geographic distribution of specific variants
  • Sex ratio (male:female) > Search first: Disease registries, OMIM, PubMed, epidemiological databases
  • Age distribution of affected individuals > Search first: CDC, disease registries, SEER, Orphanet

10. Diagnostics

  • Clinical Tests:
  • Laboratory tests (blood, urine, tissue chemistry, specific enzyme assays) > Search first: LOINC, LabTests Online, PubMed
  • Biomarkers (proteins, metabolites, genetic markers, circulating biomarkers) > Search first: FDA Biomarker List, BEST (Biomarkers, EndpointS, and other Tools), PubMed
  • Imaging studies (X-ray, CT, MRI, PET, ultrasound) > Search first: RadLex, DICOM, Radiopaedia, imaging databases
  • Functional tests (pulmonary function, cardiac stress tests) > Search first: LOINC, clinical guidelines, PubMed
  • Electrophysiology (EEG, EMG, ECG, nerve conduction studies) > Search first: LOINC, clinical neurophysiology databases, PubMed
  • Biopsy findings (histopathology, immunohistochemistry) > Search first: SNOMED CT, College of American Pathologists resources, PubMed
  • Pathology findings (microscopic examination) > Search first: SNOMED CT, Digital Pathology databases, PubMed
  • Genetic Testing:

    Search first: GTR (Genetic Testing Registry), GeneReviews, ClinGen

  • Overview of recommended genetic testing approach
  • Whole genome sequencing (WGS) utility > Search first: GTR, ClinVar, GEL (Genomics England), gnomAD
  • Whole exome sequencing (WES) utility > Search first: GTR, ClinVar, OMIM, GeneMatcher
  • Gene panels (which panels, which genes) > Search first: GTR, ClinVar, laboratory-specific databases
  • Single gene testing > Search first: GTR, ClinVar, OMIM, GeneReviews
  • Chromosomal microarray (CMA) > Search first: DECIPHER, ClinVar, dbVar, ECARUCA
  • Karyotyping > Search first: Chromosome Abnormality Database, ClinVar, cytogenetics resources
  • FISH > Search first: ClinVar, cytogenetics databases, PubMed
  • Mitochondrial DNA testing > Search first: MITOMAP, MSeqDR, ClinVar, GTR
  • Repeat expansion testing > Search first: GTR, ClinVar, repeat expansion databases, PubMed
  • Omics-Based Diagnostics (if applicable):
  • RNA sequencing / transcriptomics > Search first: GEO, ArrayExpress, GTEx, RNA-seq databases
  • Proteomics > Search first: PRIDE, ProteomeXchange, FDA Biomarker database
  • Metabolomics > Search first: MetaboLights, Metabolomics Workbench, HMDB
  • Epigenomics > Search first: GEO, ENCODE, Roadmap Epigenomics, MethBase
  • Liquid biopsy > Search first: COSMIC, ClinVar, liquid biopsy databases, PubMed
  • Clinical Criteria:
  • Standardized diagnostic criteria (DSM, ICD, society guidelines) > Search first: DSM-5, ICD-11, clinical society guidelines, UpToDate
  • Differential diagnosis (other conditions to rule out, with distinguishing features) > Search first: DynaMed, UpToDate, clinical decision support systems
  • Screening:
  • Screening methods for asymptomatic individuals (newborn screening, carrier screening, cascade screening) > Search first: ACMG recommendations, CDC newborn screening, GTR

11. Outcome/Prognosis

  • Survival and Mortality:
  • Survival rate (5-year, 10-year, overall) > Search first: SEER, cancer registries, disease-specific registries, PubMed
  • Life expectancy (with and without treatment if applicable) > Search first: Orphanet, disease registries, actuarial databases, PubMed
  • Mortality rate > Search first: CDC, WHO, GBD, national mortality databases
  • Disease-specific mortality (deaths directly attributable to disease) > Search first: Disease registries, CDC Wonder, GBD, PubMed
  • Morbidity and Function:
  • Morbidity (disease-related disability and health impacts) > Search first: GBD, WHO, disability databases, PubMed
  • Disability outcomes (long-term functional impairments) > Search first: ICF (International Classification of Functioning), disability registries
  • Quality of life measures (EQ-5D, SF-36, PROMIS, disease-specific tools) > Search first: EQ-5D database, SF-36, PROMIS, PubMed
  • Disease Course:
  • Complications (secondary problems: infections, organ failure, etc.) > Search first: ICD codes, disease registries, clinical databases, PubMed
  • Recovery potential (likelihood and extent of recovery, with vs without treatment) > Search first: Natural history studies, rehabilitation databases, PubMed
  • Prediction:
  • Prognostic factors (age, disease severity, biomarkers, treatment response) > Search first: Prognostic models databases, clinical calculators, PubMed
  • Prognostic biomarkers (molecular markers predicting disease course) > Search first: FDA Biomarker database, PubMed, cancer prognostic databases

12. Treatment

  • Pharmacotherapy:
  • Pharmacological treatments (drug names, drug classes, mechanisms of action) > Search first: DrugBank, RxNorm, ATC classification, DailyMed, FDA databases
  • Pharmacogenomics (how genetic variants affect drug metabolism, efficacy, toxicity) > Search first: PharmGKB, CPIC (Clinical Pharmacogenetics), FDA Table of PGx Biomarkers
  • Advanced Therapeutics:
  • Gene therapy (viral vectors, CRISPR, gene replacement, gene editing) > Search first: ClinicalTrials.gov, FDA gene therapy database, ASGCT resources
  • Cell therapy (stem cell transplant, CAR-T, cellular therapeutics) > Search first: ClinicalTrials.gov, FDA cell therapy database, FACT standards
  • RNA-based therapies (ASOs, siRNA, mRNA therapies) > Search first: ClinicalTrials.gov, FDA approvals, PubMed
  • Targeted therapies (treatments directed at specific molecular targets) > Search first: My Cancer Genome, OncoKB, ClinicalTrials.gov, FDA approvals
  • Immunotherapies (checkpoint inhibitors, monoclonal antibodies) > Search first: Cancer Immunotherapy Database, FDA approvals, ClinicalTrials.gov
  • Surgical and Interventional:
  • Surgical interventions (types of surgery, timing, outcomes) > Search first: CPT codes, surgical registries, clinical guidelines, PubMed
  • Supportive and Rehabilitative:
  • Supportive care (symptom management, pain control, nutrition) > Search first: Clinical guidelines, Cochrane Library, PubMed
  • Rehabilitation (physical therapy, occupational therapy, speech therapy) > Search first: Rehabilitation medicine databases, clinical guidelines, PubMed
  • Experimental:
  • Experimental treatments in clinical trials (with NCT identifiers if available) > Search first: ClinicalTrials.gov, EU Clinical Trials Register, WHO ICTRP
  • Treatment Outcomes:
  • Treatment response rates > Search first: Clinical trial databases, FDA reviews, systematic reviews, PubMed
  • Side effects and adverse events > Search first: FDA Adverse Event Reporting System (FAERS), MedWatch, PubMed
  • Treatment Strategy:
  • Treatment algorithms (clinical pathways, decision trees) > Search first: Clinical practice guidelines, NCCN Guidelines, UpToDate
  • Combination therapies > Search first: ClinicalTrials.gov, treatment guidelines, PubMed
  • Personalized medicine approaches (genotype-guided treatment) > Search first: My Cancer Genome, CIViC, PharmGKB, precision medicine databases

For each treatment, suggest NCIT (NCI Thesaurus) clinical-intervention terms where applicable.

13. Prevention

  • Prevention Levels:
  • Primary prevention (preventing disease occurrence: vaccination, risk factor modification) > Search first: CDC, WHO, USPSTF recommendations, Cochrane Library
  • Secondary prevention (early detection and treatment: screening programs, early intervention) > Search first: USPSTF, CDC screening guidelines, WHO
  • Tertiary prevention (preventing complications in those with disease) > Search first: Clinical guidelines, disease management protocols, PubMed
  • Immunization: Vaccine strategies (if applicable)

    Search first: CDC vaccine schedules, WHO immunization, FDA vaccine database

  • Screening and Early Detection:
  • Screening programs (population-based: newborn screening, cancer screening) > Search first: CDC screening programs, USPSTF, cancer screening databases
  • Genetic screening (carrier screening, preimplantation genetic diagnosis, prenatal testing) > Search first: ACMG recommendations, ACOG guidelines, GTR
  • Risk stratification (identifying high-risk individuals for targeted prevention) > Search first: Risk prediction models, clinical calculators, PubMed
  • Behavioral Interventions: Lifestyle modifications to reduce risk

    Search first: CDC, WHO, behavioral intervention databases, Cochrane Library

  • Counseling: Genetic counseling (risk assessment, family planning guidance)

    Search first: NSGC resources, ACMG guidelines, GeneReviews

  • Public Health:
  • Public health interventions (sanitation, vector control, health education) > Search first: CDC, WHO, public health databases, PubMed
  • Environmental interventions (reducing environmental risk factors) > Search first: EPA databases, WHO environmental health, PubMed
  • Prophylaxis: Preventive medications or procedures

    Search first: Clinical guidelines, FDA approvals, PubMed

14. Other Species / Natural Disease

  • Taxonomy: Species affected (with NCBI Taxon identifiers)

    Search first: NCBI Taxonomy

  • Breed: Specific breeds affected (with VBO identifiers if applicable)

    Search first: VBO (Vertebrate Breed Ontology)

  • Gene: Orthologous genes in other species (with NCBI Gene IDs)

    Search first: NCBI Gene

  • Natural Disease:
  • Naturally occurring disease in other species (companion animals, wildlife) > Search first: OMIA (Online Mendelian Inheritance in Animals), VetCompass, PubMed
  • Veterinary relevance and importance in animal health > Search first: OMIA, veterinary databases, PubMed
  • Comparative Biology:
  • Comparative pathology (similarities and differences across species) > Search first: OMIA, comparative pathology databases, PubMed
  • Evolutionary conservation of disease mechanisms > Search first: HomoloGene, OrthoMCL, Alliance of Genome Resources
  • Transmission (if applicable):
  • Zoonotic potential > Search first: CDC zoonotic diseases, WHO zoonoses, GIDEON
  • Cross-species susceptibility > Search first: NCBI Taxonomy, veterinary databases, PubMed

15. Model Organisms

  • Model Types:
  • Model organism type (mammalian, invertebrate, cellular, in vitro) > Search first: Alliance of Genome Resources, model organism databases
  • Specific model systems (mouse, rat, zebrafish, Drosophila, C. elegans, yeast, cell lines, organoids, iPSCs) > Search first: MGI, RGD, ZFIN, FlyBase, WormBase, SGD, ATCC, Cellosaurus
  • Induced models (drug treatment, surgical intervention, environmental manipulation) > Search first: MGI, model organism databases, PubMed
  • Genetic Models:
  • Types available (knockout, knock-in, transgenic, conditional, humanized) > Search first: MGI, IMPC, KOMP, EuMMCR, IMSR
  • Model Characteristics:
  • Phenotype recapitulation (how well model reproduces human disease features) > Search first: Model organism databases, comparative studies, PubMed
  • Model limitations (aspects of human disease not captured) > Search first: Model organism databases, PubMed, review articles
  • Applications:
  • Research applications (what aspects of disease can be studied) > Search first: Model organism databases, PubMed
  • Resources:
  • Model databases > Search first: MGI, RGD, ZFIN, FlyBase, WormBase, IMSR, EMMA, MMRRC

Citation Requirements

  • Cite primary literature (PMID preferred) for all mechanistic and clinical claims
  • Prioritize recent reviews and landmark papers
  • Include direct quotes from abstracts where possible to support key statements
  • Distinguish evidence source types: human clinical, model organism, in vitro, computational

Output Format

Structure your response as a comprehensive narrative organized by the sections above. For each section, provide: - Factual content with specific details (numbers, percentages, gene names, variant nomenclature) - Ontology term suggestions (HPO, GO, CL, UBERON, CHEBI, NCIT, MONDO) where applicable - Evidence citations with PMIDs - Direct quotes from abstracts to support key claims - Clear indication when information is not available or not applicable for this disease

This report will be used to populate a disease knowledge base entry with: - Pathophysiology descriptions with causal chains - Gene/protein annotations (HGNC, GO terms) - Phenotype associations (HP terms) with frequencies - Cell type involvement (CL terms) - Anatomical locations (UBERON terms) - Chemical entities (CHEBI terms) - Treatment annotations (NCIT terms) - Evidence items with PMIDs and exact abstract quotes - Epidemiology, prognosis, diagnostic, and prevention information - Animal model descriptions with phenotype recapitulation details

Hereditary hypophosphatemic rickets with hypercalciuria: disease-characteristics report

Scope and evidence. Hereditary hypophosphatemic rickets with hypercalciuria (HHRH) is primarily a biallelic SLC34A3-related, FGF23-independent renal phosphate-wasting disorder. This report distinguishes classic HHRH from milder manifestations in people carrying one SLC34A3 variant and from an HHRH-like phenotype reported with variants in both SLC34A3 and SLC34A1. The underlying evidence is predominantly pedigrees, small clinical series, and functional experiments—not population-based natural-history studies. A relevant pedigree and chromosome 9 linkage figure from the original discovery study was also inspected. (bergwitz2006slc34a3mutationsin pages 1-2, bergwitz2006slc34a3mutationsin media d6e8d46f, gordon2020digenicheterozygousmutations pages 13-14)

1. Disease information

HHRH impairs renal phosphate conservation, causing phosphate deficiency and defective skeletal mineralization during growth. Its distinguishing biochemical feature is hypercalciuria associated with increased—or inappropriately high—1,25-dihydroxyvitamin D, rather than the FGF23-excess pattern characteristic of X-linked hypophosphatemia (XLH). Identifiers: MONDO:0009431; OMIM phenotype 241530; causal-gene OMIM 609826 is reported for SLC34A3. Names include HHRH, hypophosphatemic rickets with hypercalciuria, and autosomal-recessive hypophosphatemic rickets with hypercalciuria. No disease-specific ICD-10, ICD-11, Orphanet, or MeSH identifier was independently verified; the ClinicalTrials.gov record indexes the component MeSH concepts hypophosphatemia D017674, rickets D012279, and hypercalciuria D053565. Evidence here concerns published, aggregated research participants and disease resources, not individual electronic health records. [Bergwitz et al., Am J Hum Genet, February 2006, https://doi.org/10.1086/499409.] (OpenTargets Search: hereditary hypophosphatemic rickets with hypercalciuria, bergwitz2006slc34a3mutationsin pages 1-2, NCT03771105 chunk 1)

2. Etiology, risk, protection, and gene–environment interactions

Causal lesion. Pathogenic variants affecting both SLC34A3 alleles impair the proximal-tubule sodium–phosphate cotransporter NaPi-IIc/NPT2C. Bergwitz and colleagues mapped disease to chromosome 9q34 in a Bedouin pedigree: all 10 affected individuals among 63 genotyped family members carried homozygous c.228delC, predicted to truncate the transporter; three other unrelated kindreds had biallelic variants. Consanguinity facilitated recognition of homozygosity in that pedigree but is not required: compound heterozygotes occur in unrelated-parent families. A parent or sibling with one pathogenic allele may have hypercalciuria or stones without classic rickets. [Bergwitz et al., 2006, https://doi.org/10.1086/499409; Dreimane et al., Ther Adv Musculoskelet Dis, 2020, https://doi.org/10.1177/1759720X20912862.] (bergwitz2006slc34a3mutationsin pages 1-2, dreimane2020descriptionofa pages 1-2)

Modifiers and exposures. A family study supports a potentially more severe, digenic HHRH-like presentation when heterozygous SLC34A3 and SLC34A1 variants co-occur; SLC34A1 should not therefore be entered as a second established single-gene cause of classic HHRH simply because a disease-association database links it to the phenotype. Neither a validated protective allele nor a quantified environmental risk or protection effect was identified. Dietary phosphate availability, vitamin-D status, and treatment exposures can alter biochemical expression; active vitamin-D analogues can aggravate hypercalciuria. Variable calcium excretion among relatives with the same SLC34A3 allele suggests additional genetic or environmental influences, but specific interactions have not been demonstrated. Smoking, occupation, pollutants, radiation, and infection have not been established as HHRH causes. [Gordon et al., J Clin Endocrinol Metab, 2020, https://doi.org/10.1210/clinem/dgaa217; Bergwitz et al., 2006; Dreimane et al., 2020.] (OpenTargets Search: hereditary hypophosphatemic rickets with hypercalciuria, gordon2020digenicheterozygousmutations pages 13-14, gordon2020digenicheterozygousmutations pages 12-13, bergwitz2006slc34a3mutationsin pages 9-11, dreimane2020descriptionofa pages 2-4)

3. Phenotypes and effects on daily life

The following are suggested HPO labels, not a validated HPO frequency export. Frequencies for individual findings are generally unavailable from representative HHRH cohorts; ascertainment through rickets or stones biases published case series. (bergwitz2006slc34a3mutationsin pages 1-2, hasaniranjbar2018slc34a3intronicdeletion pages 1-3, molin2021overlappingphenotypesassociated pages 8-9)

Phenotype; suggested HPO term Type and typical course Evidence and functional impact
Renal phosphate wasting; renal phosphate wasting Laboratory abnormality; intrinsic and persistent, though measured severity can vary with age and treatment Reduced phosphate reabsorption is the proximal biochemical defect; measure tubular phosphate handling rather than relying on a single serum value. (bergwitz2006slc34a3mutationsin pages 1-2, gordon2020digenicheterozygousmutations pages 12-13)
Hypophosphatemia Laboratory abnormality; usually childhood in classic HHRH, variable in milder disease Two patients with biallelic SLC34A3 findings in a selected cohort had normal measured serum phosphate; normal phosphate on one occasion does not exclude the genotype. (molin2021overlappingphenotypesassociated pages 1-2)
Hypercalciuria Laboratory abnormality; may also occur in heterozygotes Predisposes to renal calcification and stones; reported as a principal manifestation in heterozygous relatives. (bergwitz2006slc34a3mutationsin pages 1-2, hasaniranjbar2018slc34a3intronicdeletion pages 1-3)
Rickets, osteomalacia, bowing of the legs, short stature Skeletal signs, chiefly recognized in childhood; severity variable, potentially persistent Leg deformity, delayed growth, pain, impaired walking, and sometimes corrective surgery can affect mobility and participation. Adult osteomalacia or low bone density can occur. These are clinical effects, not measured HHRH-specific EQ-5D or SF-36 results. (bergwitz2006slc34a3mutationsin pages 1-2, bergwitz2006slc34a3mutationsin pages 4-6, dreimane2020descriptionofa pages 2-4)
Bone pain, muscle weakness Symptoms; variable Can limit activity; phosphate-treated brothers reported improved pain without complete skeletal recovery. (bergwitz2006slc34a3mutationsin pages 1-2, dreimane2020descriptionofa pages 4-6)
Nephrolithiasis, nephrocalcinosis Renal manifestations; sometimes recurrent, including in adults and heterozygotes Stones can produce flank pain, obstruction, hydronephrosis, and need for lithotripsy; renal imaging helps detect silent calcification. (dreimane2020descriptionofa pages 2-4, hasaniranjbar2018slc34a3intronicdeletion pages 3-4)
Elevated circulating 1,25-dihydroxyvitamin D, elevated alkaline phosphatase, and low or suppressed PTH/FGF23 Biochemical pattern; levels vary with age, phosphate balance, assays, and treatment Supports mechanism-based differential diagnosis; these are suggested phenotype labels whose exact HPO identifiers require ontology validation. (antonowicz2025approachtoa pages 11-12, jaureguiberry2008anovelmissense pages 1-2, dreimane2020descriptionofa pages 2-4)

Frequency illustration, not a population estimate: an Iranian family's 12 assessed members comprised three homozygotes, seven heterozygotes, and two noncarriers; seven relatives reportedly had stones. These proportions cannot be extrapolated to all affected people or interpreted as disease penetrance. [Hasani-Ranjbar et al., J Clin Res Pediatr Endocrinol, 2018, https://doi.org/10.4274/jcrpe.0057.] (hasaniranjbar2018slc34a3intronicdeletion pages 1-3, hasaniranjbar2018slc34a3intronicdeletion pages 3-4)

4. Genetic and molecular information

Gene: SLC34A3, encoding NaPi-IIc, an apical proximal-tubule phosphate cotransporter; mapped to 9q34, Ensembl ENSG00000198569. The HGNC numerical identifier and variant-specific ClinVar assertions were not verified and should not be fabricated. Pathogenic findings include c.228delC (predicted truncation), c.410C>T; p.Thr137Met (missense), c.671delT (predicted frameshift), and intronic 101-bp or 85-bp deletions associated with aberrant splicing. Some older reports use genomic rather than transcript-normalized deletion nomenclature; clinically reported variants should be reconciled to a current reference transcript before database entry. These are inherited germline findings; a disease-defining somatic mechanism has not been reported here. [Bergwitz et al., 2006; Ichikawa et al., J Clin Endocrinol Metab, October 2006, https://doi.org/10.1210/jc.2005-2840; Dreimane et al., 2020.] (OpenTargets Search: hereditary hypophosphatemic rickets with hypercalciuria, bergwitz2006slc34a3mutationsin pages 1-2, ichikawa2006intronicdeletionsin pages 1-2, dreimane2020descriptionofa pages 4-6)

Experimental variant effect: in a patient with p.Thr137Met and a second truncating allele, p.Thr137Met had approximately 40% of normal membrane fluorescence and, after adjustment for surface abundance, approximately 60% less phosphate uptake, corresponding to about 16% overall residual transport in heterologous assays. The truncating comparator lacked measurable expression and function. These experiments support loss of function; they do not assign a contemporary ACMG/AMP classification, variant-specific gnomAD frequency, or in-vivo residual renal transport to every patient. No causal epigenetic change, recurrent aneuploidy, translocation, or verified disease-defining large chromosomal rearrangement was identified. [Jaureguiberry et al., Am J Physiol Renal Physiol, August 2008, https://doi.org/10.1152/ajprenal.00090.2008.] (jaureguiberry2008anovelmissense pages 1-2)

5. Environmental and lifestyle information

This is a Mendelian transporter disorder, not an infectious or exposure-induced rickets syndrome. Phosphate intake or supplementation can change the phosphate deficit; vitamin-D deficiency may confound biochemical assessment, whereas inappropriate active vitamin-D analogues may intensify urinary calcium loss. General stone-prevention advice and dietary adjustments require individual monitoring: no HHRH-specific randomized study here establishes that a particular fluid, calcium, salt, exercise, or other lifestyle prescription prevents complications. Infection control, vector control, and vaccination are not etiologic interventions for HHRH. (dreimane2020descriptionofa pages 2-4, hasaniranjbar2018slc34a3intronicdeletion pages 1-3, antonowicz2025approachtoa pages 11-12)

6. Mechanism and pathophysiology

Ordered causal chain—classic biallelic SLC34A3 disease: (bergwitz2006slc34a3mutationsin pages 1-2, jaureguiberry2008anovelmissense pages 1-2, antonowicz2025approachtoa pages 11-12, ichikawa2006intronicdeletionsin pages 1-2)

  1. Biallelic SLC34A3 loss of function leads to reduced functional NaPi-IIc at the apical brush-border membrane of renal proximal-tubule epithelial cells. (bergwitz2006slc34a3mutationsin pages 1-2, jaureguiberry2008anovelmissense pages 1-2)
  2. Reduced NaPi-IIc-mediated transport leads to inappropriate urinary phosphate loss and diminished tubular phosphate reabsorption despite phosphate need. (bergwitz2006slc34a3mutationsin pages 1-2, ichikawa2006intronicdeletionsin pages 1-2)
  3. Renal phosphate loss leads to hypophosphatemia and usually appropriately low/suppressed FGF23; low phosphate and reduced FGF23 lead to less restraint on renal 1α-hydroxylase and increased or inappropriately high 1,25-dihydroxyvitamin D. The endocrine sequence is well-supported physiologically, although its contribution in every individual is inferred from the combined biochemical observations. (bergwitz2006slc34a3mutationsin pages 1-2, antonowicz2025approachtoa pages 11-12, dreimane2020descriptionofa pages 1-2)
  4. Increased active vitamin D leads to greater intestinal calcium absorption and often lower PTH, which results in hypercalciuria. (bergwitz2006slc34a3mutationsin pages 1-2, ichikawa2006intronicdeletionsin pages 1-2)
  5. Branch—skeletal: phosphate depletion leads to inadequate growth-plate and bone mineralization, resulting in rickets or osteomalacia, limb bowing, impaired growth, pain, and weakness. (bergwitz2006slc34a3mutationsin pages 1-2, ichikawa2006intronicdeletionsin pages 1-2)
  6. Branch—renal: hypercalciuria, with other urinary factors, increases the likelihood of crystals, nephrolithiasis, and nephrocalcinosis. Individual stone formation is not deterministic; contributions from urine saturation, diet, or other modifiers remain incompletely demonstrated specifically in HHRH. (ichikawa2006intronicdeletionsin pages 1-2, dreimane2020descriptionofa pages 2-4, bergwitz2006slc34a3mutationsin pages 9-11)

This is principally a proximal-tubule ion-transport and phosphate/vitamin-D homeostasis mechanism, not a demonstrated primary Wnt, MAPK, mTOR, apoptosis, or immune disorder. Mechanistically relevant suggested GO processes are sodium-dependent phosphate transport, transmembrane phosphate-ion transport, renal phosphate-ion absorption, vitamin-D metabolic process, calcium-ion homeostasis, and bone mineralization; the relevant suggested GO cellular component is the apical plasma membrane/brush-border membrane. Cell-type suggestions are proximal-tubule epithelial cell (CL label; identifier to verify), intestinal epithelial cell, and growth-plate chondrocyte/osteoblast downstream. HHRH-specific validated single-cell, spatial-transcriptomic, proteomic, metabolomic, lipidomic, epigenomic, or CRISPR-screen signature was not established by the retrieved evidence. (bergwitz2006slc34a3mutationsin pages 1-2, jaureguiberry2008anovelmissense pages 1-2, antonowicz2025approachtoa pages 11-12)

7. Anatomy

Primary site: kidney proximal-tubule epithelium—particularly its apical brush border, where NaPi-IIc functions. Downstream sites: growth-plate cartilage and mineralizing bone; the intestinal epithelium participates in increased calcium absorption; renal collecting/medullary sites may subsequently contain stones or calcifications. Suggested UBERON labels are kidney, renal proximal tubule, bone, growth plate, small intestine, and renal medulla; suggested CL labels are proximal-tubule epithelial cell, intestinal epithelial cell, chondrocyte, and osteoblast. The precise ontology accession for each suggestion needs a term-service check before ingestion. Renal stones may be bilateral, but HHRH has no defining left–right lateralization. [Bergwitz et al., 2006; Jaureguiberry et al., 2008; Dreimane et al., 2020.] (bergwitz2006slc34a3mutationsin pages 1-2, jaureguiberry2008anovelmissense pages 1-2, dreimane2020descriptionofa pages 2-4)

8. Temporal development

The genetic lesion is present from conception; clinically evident rickets and impaired growth commonly emerge in childhood, often around walking age, whereas renal stones or osteomalacia can prompt recognition later. This is a chronic, variably expressed disorder, not an episodic infection or a formally staged disease. Symptoms may improve with phosphate replacement, but established deformity and stone susceptibility may persist; spontaneous, durable remission rates are unknown. Skeletal growth is an important intervention window because persistent deformity or short stature may not fully reverse after growth-plate closure. A selected clinical cohort also shows that some biallelic carriers lack hypophosphatemia or obvious bone findings at assessment. (ichikawa2006intronicdeletionsin pages 1-2, dreimane2020descriptionofa pages 2-4, dreimane2020descriptionofa pages 4-6, molin2021overlappingphenotypesassociated pages 8-9)

9. Inheritance, penetrance, and population

Classic HHRH is autosomal recessive: affected individuals usually have two pathogenic SLC34A3 alleles; relatives carrying one allele may exhibit hypercalciuria, mild hypophosphatemia, or kidney stones. Expressivity is variable; one functional-genetic report described at least 70% expressivity for homozygous c.228delC in its original family, which must not be generalized as a disease-wide penetrance estimate. The digenic SLC34A1/SLC34A3 family warrants a separate genotype–phenotype annotation. No substantiated HHRH-specific anticipation, germline mosaicism rate, general carrier frequency, sex ratio, or incidence was established. The Bedouin and Iranian families document cases in particular populations, not ethnicity-restricted disease. (bergwitz2006slc34a3mutationsin pages 1-2, jaureguiberry2008anovelmissense pages 1-2, hasaniranjbar2018slc34a3intronicdeletion pages 1-3, gordon2020digenicheterozygousmutations pages 13-14)

A 2025 pediatric review lists approximately 1 per 250,000 as an estimated prevalence attributed to OMIM/Orphanet; this is not a verified population-registry measurement. In a highly selected 2021 cohort of 185 people investigated for low PTH/hypercalcemia/hypercalciuria, three had biallelic SLC34A3 findings; this likewise cannot estimate population HHRH prevalence. [Antonowicz et al., Biomolecules, September 2025, https://doi.org/10.3390/biom15091321; Molin et al., Front Endocrinol, October 2021, https://doi.org/10.3389/fendo.2021.736240.] (antonowicz2025approachtoa pages 11-12, molin2021overlappingphenotypesassociated pages 1-2)

10. Diagnostics

Clinical work-up. Assess growth, leg alignment, pain, fracture or stone history, and family history; obtain age-adjusted fasting serum phosphate, calcium, alkaline phosphatase, creatinine/eGFR, PTH, 25-hydroxyvitamin D, and, when informative, 1,25-dihydroxyvitamin D and intact FGF23. Pair blood and urine phosphate and creatinine to evaluate tubular reabsorption or TmP/GFR; assess urinary calcium/creatinine or 24-hour urinary calcium and perform renal ultrasound for stones or nephrocalcinosis. Radiographs can document metaphyseal rickets; selected patients may warrant bone-density evaluation. Interpretation requires age, vitamin-D status, renal function, recent phosphate intake, and assay context. No specific universal HHRH biochemical cutoff was established in these sources. (ichikawa2006intronicdeletionsin pages 1-2, dreimane2020descriptionofa pages 2-4, hasaniranjbar2018slc34a3intronicdeletion pages 3-4, gordon2020digenicheterozygousmutations pages 7-9)

Molecular confirmation. Sequence SLC34A3, including splice-adjacent regions and deletion/duplication assessment as technically appropriate; use a renal-phosphate-wasting/rickets panel or exome sequencing when clinical features overlap or a second allele is elusive. Include SLC34A1, CYP24A1, PHEX, FGF23, DMP1, and genes causing proximal tubular/Fanconi phenotypes according to presentation. Confirm candidate variants, phase alleles, and evaluate segregation; assign ACMG/AMP classifications per variant, rather than treating every rare or monoallelic finding as diagnostic. Panels, single-gene analysis, and exome sequencing have been used in the cited families. Conventional karyotype, FISH, repeat-expansion tests, mitochondrial sequencing, liquid biopsy, and research omics are not routine tests for classic HHRH; chromosomal microarray is reserved for an independent indication or suspected copy-number lesion. (ichikawa2006intronicdeletionsin pages 1-2, dreimane2020descriptionofa pages 1-2, dreimane2020descriptionofa pages 4-6, molin2021overlappingphenotypesassociated pages 8-9, gordon2020digenicheterozygousmutations pages 7-9)

Differential diagnosis. XLH/PHEX and other FGF23-mediated rickets differ mechanistically and often lack untreated HHRH's high-calcitriol/hypercalciuria pattern; SLC34A1-related infantile hypercalcemia, CYP24A1-related vitamin-D hypersensitivity, Dent disease, generalized Fanconi syndrome, nutritional rickets, and acquired renal phosphate wasting also require consideration. The distinction matters because treatment with active vitamin D appropriate to other forms of hypophosphatemia may be harmful in HHRH. Family cascade testing is reasonable after molecular diagnosis; a validated population or newborn HHRH screening program was not identified. (bergwitz2006slc34a3mutationsin pages 1-2, antonowicz2025approachtoa pages 11-12, ichikawa2006intronicdeletionsin pages 1-2, dreimane2020descriptionofa pages 2-4, molin2021overlappingphenotypesassociated pages 8-9)

11. Outcome and prognosis

The principal documented morbidity is skeletal deformity, impaired growth, pain, low mineralization, and recurrent urinary stones or nephrocalcinosis; obstruction and surgery are possible. In two treated brothers, phosphate improved calcium metabolism and pain but did not completely heal rickets or normalize growth. One brother had an obstructing stone requiring lithotripsy. Longer-term renal outcomes, kidney-cyst frequency, standardized quality-of-life outcomes, treatment-specific response rates, five-/ten-year survival, life expectancy, and disease-attributable mortality cannot be quantified reliably from the accessed studies. Early diagnosis, severity of skeletal disease, renal stone burden, and biochemical response are clinically useful considerations, not validated HHRH prognostic scores. (dreimane2020descriptionofa pages 2-4, dreimane2020descriptionofa pages 4-6, hasaniranjbar2018slc34a3intronicdeletion pages 3-4)

12. Treatment and real-world implementation

Mainstay: individualized oral phosphate replacement, typically divided across the day, with monitoring of growth, symptoms, phosphate handling, PTH, urinary calcium, and renal imaging. Phosphate can reduce the drive to excess calcitriol synthesis and thereby improve hypercalciuria; it does not repair the transporter. Do not routinely add calcitriol or other active vitamin-D analogues as one might in FGF23-mediated rickets: baseline active vitamin D is already high or inappropriate, and additional exposure may worsen hypercalciuria. Correct proven nutritional deficiencies thoughtfully under biochemical monitoring rather than equating avoidance of active analogues with avoidance of all vitamin-D care. Suggested intervention labels for later NCIT validation: oral phosphate supplementation, genetic testing/genetic counseling, renal ultrasonography, orthopedic corrective surgery, lithotripsy, and growth-hormone therapy; exact NCIT codes were not verified. Suggested ChEBI labels are phosphate, calcium ion, and calcitriol, also requiring identifier validation. [Ichikawa et al., 2006; Dreimane et al., 2020.] (ichikawa2006intronicdeletionsin pages 1-2, dreimane2020descriptionofa pages 2-4, dreimane2020descriptionofa pages 4-6)

Observed outcomes versus experimental use. Ichikawa and colleagues described a child treated with 500–750 mg/day oral potassium phosphate in divided doses and leg bracing; that case dose is not a universal prescription. A later two-brother report used oral sodium/potassium phosphate; one boy still developed deformity requiring surgery. In the other, adding recombinant human growth hormone at 0.3 mg/kg/week coincided with growth velocity rising 3.4 to 8.5 cm/year and tubular phosphate reabsorption 83.5% to 96.5%. Puberty, time, and the single-family design preclude a controlled efficacy claim: growth hormone is a selected, investigational adjunct, not established first-line HHRH therapy. Orthopedic procedures and stone interventions address complications; rehabilitation and pain management can address residual limitations. No established HHRH-specific gene, RNA, cell, or immunotherapy, or validated pharmacogenomic treatment rule, was found. (ichikawa2006intronicdeletionsin pages 1-2, dreimane2020descriptionofa pages 2-4, dreimane2020descriptionofa pages 4-6)

Clinical research: NCT03771105, The Impact of Phosphate Metabolism on Healthy Aging, first posted 10 December 2018, compares genetically confirmed HHRH with XLH under phosphate loading and examines planned endocrine, renal, vascular, and cardiovascular outcomes. The registered target of 3,500 mg/day total phosphate intake for 30 days is a study protocol, not a general treatment recommendation. The retrieved record reports planned enrollment of 30 and recruitment, not efficacy results; its status should be checked directly before use because registry records can change. A general rare-kidney-disease registry, NCT06065852, is observational rather than evidence of an HHRH treatment. (NCT03771105 chunk 1)

13. Prevention

Primary prevention of the germline condition is not available through vaccination or lifestyle change. Offer genetic counseling and discuss reproductive options, including variant-specific carrier testing and, where appropriate and locally available, prenatal or preimplantation testing after familial pathogenic variants are established. Secondary prevention: evaluate at-risk siblings and relatives early with genotype-informed testing, mineral biochemistry, urinary calcium, and indicated imaging. Tertiary prevention: treat phosphate deficit, monitor stones and renal function, avoid avoidable exacerbation of hypercalciuria, and manage orthopedic or urologic complications. These measures aim to reduce manifestations; they have not been validated as a population-wide HHRH prevention program. (bergwitz2006slc34a3mutationsin pages 1-2, dreimane2020descriptionofa pages 2-4, hasaniranjbar2018slc34a3intronicdeletion pages 1-3, hasaniranjbar2018slc34a3intronicdeletion pages 3-4)

14. Other species and natural disease

The established naturally affected species in these sources is human (Homo sapiens; NCBI Taxon 9606). Experimental evidence involves mouse (Mus musculus; Taxon 10090), frog (Xenopus laevis; Taxon 8355) oocytes, and opossum-kidney-derived cells; these are models/assays, not documented naturally affected breeds. No verified naturally occurring SLC34A3-associated HHRH in a companion-animal breed, breed ontology assignment, animal founder variant, zoonotic transmission, or infectious cross-species transmission was established. Ortholog gene identifiers in other species require direct database validation. (jaureguiberry2008anovelmissense pages 1-2, gordon2020digenicheterozygousmutations pages 15-16)

15. Model organisms and experimental systems

In vitro: NaPi-IIc wild-type and patient-variant constructs expressed in opossum-kidney cells and Xenopus oocytes quantify apical localization and sodium-dependent radiolabeled-phosphate uptake. These assays established the functional defect of p.Thr137Met and a truncating allele, but cannot capture whole-organism endocrine feedback or reliably predict an individual patient's severity. Genetic mice: published comparisons discussed experimentally disrupted Slc34a1/Npt2a and combined Slc34a1/Slc34a3 loci; double-homozygous loss produces severe phosphate depletion, hypercalciuria, and rickets, more pronounced than either knockout alone. Species differences in transporter contributions and the fact that an Npt2a knockout is not a single-gene Slc34a3 HHRH model limit direct translation. A specific naturally arising Slc34a3 mouse allele, verified MGI strain identifier, disease-specific organoid, or HHRH single-cell model was not established from the accessible studies. [Jaureguiberry et al., 2008; Gordon et al., 2020, https://doi.org/10.1210/clinem/dgaa217.] (jaureguiberry2008anovelmissense pages 1-2, gordon2020digenicheterozygousmutations pages 15-16, bergwitz2006slc34a3mutationsin pages 2-4)

Recent research, evidence provenance, and database-entry cautions

A directly relevant 2023 paper is Sadeghi-Alavijeh et al., “Rare variants in the sodium-dependent phosphate transporter gene SLC34A3 explain missing heritability of urinary stone disease,” Kidney International 104:975–984, https://doi.org/10.1016/j.kint.2023.06.019. A 2024 HHRH-specific review/systematic review by Dodamani et al. addresses enthesopathy, renal cysts, and C-terminal FGF23: Calcified Tissue International 114:137–146, https://doi.org/10.1007/s00223-023-01156-2. Their full reports were not accessible for verification in this retrieval, so their quantitative conclusions are not assigned to HHRH in this entry. Similarly, a multicenter transporter-carrier outcome study was published in 2025 after a 2024 DOI acceptance record: Brunkhorst et al., Kidney International 107:116–129, https://doi.org/10.1016/j.kint.2024.08.035; its disease-specific results were not accessible for extraction. A 2021 selected cohort does independently establish that normophosphatemic SLC34A3 biallelic presentations occur. (zaniew2026molecularlandscapeof pages 14-17, molin2021overlappingphenotypesassociated pages 1-2)

The table below records the principal directly assessed evidence and its limits. (bergwitz2006slc34a3mutationsin pages 1-2, jaureguiberry2008anovelmissense pages 1-2, hasaniranjbar2018slc34a3intronicdeletion pages 1-3, dreimane2020descriptionofa pages 2-4, molin2021overlappingphenotypesassociated pages 1-2)

Study Design / sample Core HHRH evidence Key caveat Publication
Bergwitz et al. (2006) Linkage, homozygosity mapping, and sequencing; 63 members of a consanguineous Bedouin pedigree, including 10 affected individuals All 10 affected relatives were homozygous for SLC34A3 c.228delC, predicted to truncate NaPi-IIc in its first transmembrane domain; additional biallelic variants were found in three unrelated kindreds. (bergwitz2006slc34a3mutationsin pages 1-2) Pedigree-enriched discovery study; it does not estimate population prevalence or penetrance across all variants. American Journal of Human Genetics, 2006; DOI
Jaureguiberry et al. (2008) Single-patient genotype–phenotype study with functional expression in opossum-kidney cells and Xenopus oocytes Compound heterozygosity for p.Thr137Met and a truncating allele; p.Thr137Met retained approximately 16% overall function, whereas the truncating allele caused complete loss of expression and function. (jaureguiberry2008anovelmissense pages 1-2) Heterologous systems and one patient; residual activity may not translate directly to proximal-tubule transport in vivo. American Journal of Physiology–Renal Physiology, 2008; DOI
Hasani-Ranjbar et al. (2018) Family case series; 12 relatives plus 10 unrelated controls A 101-bp SLC34A3 intronic deletion was present homozygously in 3, heterozygously in 7, and absent in 2 relatives. Heterozygotes generally had milder biochemical disease but recurrent stones and hypercalciuria. (hasaniranjbar2018slc34a3intronicdeletion pages 1-3) Small, single-kindred study; related observations are not independent and cannot define population-level frequencies or penetrance. Journal of Clinical Research in Pediatric Endocrinology, 2018; DOI
Dreimane et al. (2020) Two affected brothers in one family; oral phosphate, with recombinant growth hormone added in one brother Both brothers had compound-heterozygous SLC34A3 deletions. In the brother receiving phosphate plus growth hormone, growth velocity increased from 3.4 to 8.5 cm/year and tubular phosphate reabsorption from 83.5% to 96.5%. (dreimane2020descriptionofa pages 2-4, dreimane2020descriptionofa pages 4-6) Uncontrolled single-family comparison; puberty, age, adherence, and other differences prevent attribution of benefit solely to growth hormone. Therapeutic Advances in Musculoskeletal Disease, 2020; DOI
Molin et al. (2021) Sequencing cohort of 185 highly selected patients with low PTH, hypercalcemia and/or hypercalciuria, plus relatives 3 participants carried biallelic SLC34A3 variants; 2 biallelic cases were normophosphatemic, showing that normal serum phosphate does not invariably exclude SLC34A3 disease. (molin2021overlappingphenotypesassociated pages 1-2) Ascertainment was based on vitamin-D-hypersensitivity phenotypes, not suspected HHRH or the general population; prevalence and phenotype proportions are not generalizable. Frontiers in Endocrinology, 2021; DOI

Table: Key genetic, functional, family, and treatment evidence for SLC34A3-related HHRH. Study-specific limitations prevent small or selected cohorts from being interpreted as population estimates.

Verbatim abstract evidence for knowledge-base evidence items: Bergwitz et al. (2006): “Individuals of the investigated kindreds who were heterozygous for a SLC34A3 mutation frequently showed hypercalciuria”; Jaureguiberry et al. (2008): “The resulting overall reduction of function of this NaPi-IIc mutant to 16%”; Hasani-Ranjbar et al. (2018): “The heterozygous patients displayed milder clinical symptoms compared with homozygous patients”; Molin et al. (2021): “a normal phosphatemia was reported in 2 patients with biallelic mutations in SLC34A3.” These quotations support, respectively, carrier expression, an in-vitro variant effect, within-family severity differences, and phenotypic variability; none establishes a population frequency. DOI links above identify the publications. PMIDs, unverified ontology accession numbers, and variant-specific population allele frequencies are deliberately omitted rather than guessed. (bergwitz2006slc34a3mutationsin pages 1-2, jaureguiberry2008anovelmissense pages 1-2, hasaniranjbar2018slc34a3intronicdeletion pages 1-3, molin2021overlappingphenotypesassociated pages 1-2)

References

  1. (bergwitz2006slc34a3mutationsin pages 1-2): Clemens Bergwitz, Nicole M. Roslin, Martin Tieder, J.C. Loredo-Osti, Murat Bastepe, Hilal Abu-Zahra, Danielle Frappier, Kelly Burkett, Thomas O. Carpenter, Donald Anderson, Michèle Garabédian, Isabelle Sermet, T. Mary Fujiwara, Kenneth Morgan, Harriet S. Tenenhouse, and Harald Jüppner. Slc34a3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter napi-iic in maintaining phosphate homeostasis. The American Journal of Human Genetics, 78:179-192, Feb 2006. URL: https://doi.org/10.1086/499409, doi:10.1086/499409. This article has 554 citations.

  2. (bergwitz2006slc34a3mutationsin media d6e8d46f): Clemens Bergwitz, Nicole M. Roslin, Martin Tieder, J.C. Loredo-Osti, Murat Bastepe, Hilal Abu-Zahra, Danielle Frappier, Kelly Burkett, Thomas O. Carpenter, Donald Anderson, Michèle Garabédian, Isabelle Sermet, T. Mary Fujiwara, Kenneth Morgan, Harriet S. Tenenhouse, and Harald Jüppner. Slc34a3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter napi-iic in maintaining phosphate homeostasis. The American Journal of Human Genetics, 78:179-192, Feb 2006. URL: https://doi.org/10.1086/499409, doi:10.1086/499409. This article has 554 citations.

  3. (gordon2020digenicheterozygousmutations pages 13-14): Rebecca J Gordon, Dong Li, Daniel Doyle, Joshua Zaritsky, and Michael A Levine. Digenic heterozygous mutations in slc34a3 and slc34a1 cause dominant hypophosphatemic rickets with hypercalciuria. The Journal of clinical endocrinology and metabolism, 105:2392-2400, Apr 2020. URL: https://doi.org/10.1210/clinem/dgaa217, doi:10.1210/clinem/dgaa217. This article has 20 citations.

  4. (OpenTargets Search: hereditary hypophosphatemic rickets with hypercalciuria): Open Targets Query (hereditary hypophosphatemic rickets with hypercalciuria, 8 results). Buniello, A. et al. (2025). Open Targets Platform: facilitating therapeutic hypotheses building in drug discovery. Nucleic Acids Research.

  5. (NCT03771105 chunk 1): The Impact of Phosphate Metabolism on Healthy Aging. Yale University. 2019. ClinicalTrials.gov Identifier: NCT03771105

  6. (dreimane2020descriptionofa pages 1-2): Daina Dreimane, Alyssa Chen, and Clemens Bergwitz. Description of a novel slc34a3.c.671delt mutation causing hereditary hypophosphatemic rickets with hypercalciuria in two adolescent boys and response to recombinant human growth hormone. Therapeutic Advances in Musculoskeletal Disease, Sep 2020. URL: https://doi.org/10.1177/1759720x20912862, doi:10.1177/1759720x20912862. This article has 9 citations and is from a peer-reviewed journal.

  7. (gordon2020digenicheterozygousmutations pages 12-13): Rebecca J Gordon, Dong Li, Daniel Doyle, Joshua Zaritsky, and Michael A Levine. Digenic heterozygous mutations in slc34a3 and slc34a1 cause dominant hypophosphatemic rickets with hypercalciuria. The Journal of clinical endocrinology and metabolism, 105:2392-2400, Apr 2020. URL: https://doi.org/10.1210/clinem/dgaa217, doi:10.1210/clinem/dgaa217. This article has 20 citations.

  8. (bergwitz2006slc34a3mutationsin pages 9-11): Clemens Bergwitz, Nicole M. Roslin, Martin Tieder, J.C. Loredo-Osti, Murat Bastepe, Hilal Abu-Zahra, Danielle Frappier, Kelly Burkett, Thomas O. Carpenter, Donald Anderson, Michèle Garabédian, Isabelle Sermet, T. Mary Fujiwara, Kenneth Morgan, Harriet S. Tenenhouse, and Harald Jüppner. Slc34a3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter napi-iic in maintaining phosphate homeostasis. The American Journal of Human Genetics, 78:179-192, Feb 2006. URL: https://doi.org/10.1086/499409, doi:10.1086/499409. This article has 554 citations.

  9. (dreimane2020descriptionofa pages 2-4): Daina Dreimane, Alyssa Chen, and Clemens Bergwitz. Description of a novel slc34a3.c.671delt mutation causing hereditary hypophosphatemic rickets with hypercalciuria in two adolescent boys and response to recombinant human growth hormone. Therapeutic Advances in Musculoskeletal Disease, Sep 2020. URL: https://doi.org/10.1177/1759720x20912862, doi:10.1177/1759720x20912862. This article has 9 citations and is from a peer-reviewed journal.

  10. (hasaniranjbar2018slc34a3intronicdeletion pages 1-3): Shirin Hasani-Ranjbar, Hanieh-Sadat Ejtahed, Mahsa M. Amoli, Fatemeh Bitarafan, Mostafa Qorbani, Akbar Soltani, and Bahareh Yarjoo. Slc34a3 intronic deletion in an iranian kindred with hereditary hypophosphatemic rickets with hypercalciuria. Journal of Clinical Research in Pediatric Endocrinology, 10:343-349, May 2018. URL: https://doi.org/10.4274/jcrpe.0057, doi:10.4274/jcrpe.0057. This article has 22 citations.

  11. (molin2021overlappingphenotypesassociated pages 8-9): Arnaud Molin, Sandrine Lemoine, Martin Kaufmann, Pierre Breton, Marie Nowoczyn, Céline Ballandonne, Nadia Coudray, Hervé Mittre, Nicolas Richard, Amélie Ryckwaert, Alinoe Lavillaureix, Glenville Jones, Justine Bacchetta, and Marie-Laure Kottler. Overlapping phenotypes associated with cyp24a1, slc34a1, and slc34a3 mutations: a cohort study of patients with hypersensitivity to vitamin d. Frontiers in Endocrinology, Oct 2021. URL: https://doi.org/10.3389/fendo.2021.736240, doi:10.3389/fendo.2021.736240. This article has 40 citations.

  12. (molin2021overlappingphenotypesassociated pages 1-2): Arnaud Molin, Sandrine Lemoine, Martin Kaufmann, Pierre Breton, Marie Nowoczyn, Céline Ballandonne, Nadia Coudray, Hervé Mittre, Nicolas Richard, Amélie Ryckwaert, Alinoe Lavillaureix, Glenville Jones, Justine Bacchetta, and Marie-Laure Kottler. Overlapping phenotypes associated with cyp24a1, slc34a1, and slc34a3 mutations: a cohort study of patients with hypersensitivity to vitamin d. Frontiers in Endocrinology, Oct 2021. URL: https://doi.org/10.3389/fendo.2021.736240, doi:10.3389/fendo.2021.736240. This article has 40 citations.

  13. (bergwitz2006slc34a3mutationsin pages 4-6): Clemens Bergwitz, Nicole M. Roslin, Martin Tieder, J.C. Loredo-Osti, Murat Bastepe, Hilal Abu-Zahra, Danielle Frappier, Kelly Burkett, Thomas O. Carpenter, Donald Anderson, Michèle Garabédian, Isabelle Sermet, T. Mary Fujiwara, Kenneth Morgan, Harriet S. Tenenhouse, and Harald Jüppner. Slc34a3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter napi-iic in maintaining phosphate homeostasis. The American Journal of Human Genetics, 78:179-192, Feb 2006. URL: https://doi.org/10.1086/499409, doi:10.1086/499409. This article has 554 citations.

  14. (dreimane2020descriptionofa pages 4-6): Daina Dreimane, Alyssa Chen, and Clemens Bergwitz. Description of a novel slc34a3.c.671delt mutation causing hereditary hypophosphatemic rickets with hypercalciuria in two adolescent boys and response to recombinant human growth hormone. Therapeutic Advances in Musculoskeletal Disease, Sep 2020. URL: https://doi.org/10.1177/1759720x20912862, doi:10.1177/1759720x20912862. This article has 9 citations and is from a peer-reviewed journal.

  15. (hasaniranjbar2018slc34a3intronicdeletion pages 3-4): Shirin Hasani-Ranjbar, Hanieh-Sadat Ejtahed, Mahsa M. Amoli, Fatemeh Bitarafan, Mostafa Qorbani, Akbar Soltani, and Bahareh Yarjoo. Slc34a3 intronic deletion in an iranian kindred with hereditary hypophosphatemic rickets with hypercalciuria. Journal of Clinical Research in Pediatric Endocrinology, 10:343-349, May 2018. URL: https://doi.org/10.4274/jcrpe.0057, doi:10.4274/jcrpe.0057. This article has 22 citations.

  16. (antonowicz2025approachtoa pages 11-12): Agnieszka Antonowicz, Patryk Lipiński, Michał Popow, and Piotr Skrzypczyk. Approach to a child with hypophosphatemia. Biomolecules, 15:1321, Sep 2025. URL: https://doi.org/10.3390/biom15091321, doi:10.3390/biom15091321. This article has 4 citations.

  17. (jaureguiberry2008anovelmissense pages 1-2): Graciana Jaureguiberry, Thomas O. Carpenter, Stuart Forman, Harald Jüppner, and Clemens Bergwitz. A novel missense mutation in slc34a3 that causes hereditary hypophosphatemic rickets with hypercalciuria in humans identifies threonine 137 as an important determinant of sodium-phosphate cotransport in napi-iic. American journal of physiology. Renal physiology, 295 2:F371-9, Aug 2008. URL: https://doi.org/10.1152/ajprenal.00090.2008, doi:10.1152/ajprenal.00090.2008. This article has 83 citations.

  18. (ichikawa2006intronicdeletionsin pages 1-2): Shoji Ichikawa, Andrea H. Sorenson, Erik A. Imel, Nancy E. Friedman, Joseph M. Gertner, and Michael J. Econs. Intronic deletions in the slc34a3 gene cause hereditary hypophosphatemic rickets with hypercalciuria. The Journal of clinical endocrinology and metabolism, 91 10:4022-7, Oct 2006. URL: https://doi.org/10.1210/jc.2005-2840, doi:10.1210/jc.2005-2840. This article has 147 citations.

  19. (gordon2020digenicheterozygousmutations pages 7-9): Rebecca J Gordon, Dong Li, Daniel Doyle, Joshua Zaritsky, and Michael A Levine. Digenic heterozygous mutations in slc34a3 and slc34a1 cause dominant hypophosphatemic rickets with hypercalciuria. The Journal of clinical endocrinology and metabolism, 105:2392-2400, Apr 2020. URL: https://doi.org/10.1210/clinem/dgaa217, doi:10.1210/clinem/dgaa217. This article has 20 citations.

  20. (gordon2020digenicheterozygousmutations pages 15-16): Rebecca J Gordon, Dong Li, Daniel Doyle, Joshua Zaritsky, and Michael A Levine. Digenic heterozygous mutations in slc34a3 and slc34a1 cause dominant hypophosphatemic rickets with hypercalciuria. The Journal of clinical endocrinology and metabolism, 105:2392-2400, Apr 2020. URL: https://doi.org/10.1210/clinem/dgaa217, doi:10.1210/clinem/dgaa217. This article has 20 citations.

  21. (bergwitz2006slc34a3mutationsin pages 2-4): Clemens Bergwitz, Nicole M. Roslin, Martin Tieder, J.C. Loredo-Osti, Murat Bastepe, Hilal Abu-Zahra, Danielle Frappier, Kelly Burkett, Thomas O. Carpenter, Donald Anderson, Michèle Garabédian, Isabelle Sermet, T. Mary Fujiwara, Kenneth Morgan, Harriet S. Tenenhouse, and Harald Jüppner. Slc34a3 mutations in patients with hereditary hypophosphatemic rickets with hypercalciuria predict a key role for the sodium-phosphate cotransporter napi-iic in maintaining phosphate homeostasis. The American Journal of Human Genetics, 78:179-192, Feb 2006. URL: https://doi.org/10.1086/499409, doi:10.1086/499409. This article has 554 citations.

  22. (zaniew2026molecularlandscapeof pages 14-17): M Zaniew, E Bukowska-Olech, M Kołbuc, and A Orlik. Molecular landscape of medullary nephrocalcinosis in children–a nationwide, prospective cohort study. Unknown journal, 2026.

Artifacts

Reference Validation

Checked with linkml-reference-validator 0.3.0.

Outcome Count
References checked 12
Resolved 12
Unresolved (possible confabulation) 0
Unverifiable 0
References weighed for topical relevance 12
On topic 5
Off topic 0

All extracted references resolved successfully.

Term Validation

Checked with linkml-term-validator 0.4.5, through the ols: adapter.

Outcome Count
Terms checked 1
Resolved 1
Unresolved (possible confabulation) 0
Obsolete 0
Unverifiable 0
Terms whose name was checked 1
Terms named correctly 0
Terms named as a different term 1

Terms the report names something else

These identifiers resolve, so nothing about them looks wrong, and the ontology calls them something unrelated to what the report calls them. That usually means the identifier is not the one the sentence needs:

  • MONDO:0009431 (2 mentions) - the report calls it "if available"; MONDO calls it hereditary hypophosphatemic rickets with hypercalciuria
